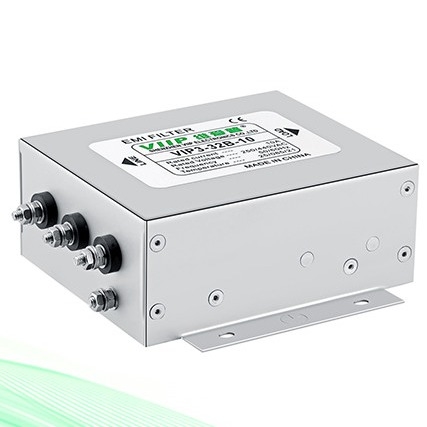

380V 200A AC Line Three Phase EMC Filter For Medical Equipment

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-32B-200
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Transfer Function:

General Purpose

Rated Voltage:

110/250VAC

Rated Current:

Application:

Medical Equipment

Case:

Metal

Product Name:

3 Phase Emi Filter

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

Three Phase EMC Filter 380V

Medical Equipment Three Phase EMC Filter

200A 3 Phase EMI Filter

Product Description

380V 200A AC Line Three Phase EMC Filter For Medical equipment

Description:

suitable for three phase three line power supply

compact structure ,simple and time-saving installation,specially suitable for applications with limited space ,highly cost effective

Specification

Item	3 phase emi Filter
Model	VIP3-32B-200
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	200A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	2250VDC
Line to Ground	2700VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	1pcs
Applications	Laser equipment
leading time	5~15 weekdays

Features:

Protection against interference of voltage.
Advanced two-stage filtering circuits with high saturating resistant toroidal inductors
Customized products according to customer's requirements

More details:

380V 200A AC Line Three Phase EMC Filter For Medical Equipment 0

Electrical schematic:

Mechanical Dimension(mm):

		A	B	C	E	F	G	H		J	K	L	M	N	p	Q
VIP3-32B	10A	120	100	50	130	153	60	115	Φ4 0	6	50	28	10	39	25	M4

	20A	120	100	50	130	151	60	115	Φ4 0	6	50	28	10	3	25	M4

	SOA	150	105	60	135	190	90	120	Φ4 0	6	50	35	15	31	52 5	M6

	100A	200	127	80	170	269	116	150	Φ60	9	70	50	20	9	46	MB

	150A	260	170	100	220	324	172	196	Φ80	12	90	65	30	46	63	M10

	200A	260	170	100	220	323	172	196	Φ80	12	90	65	30	42	63	M10

VIP3-32C	6A	96	80	42	105	131	50	95	Φ4 0	6	42	26	9	32	29 5	M4

	10A	96	80	42	105	130	50	95	Φ4 0	6	42	26	9	42	29 5	M4

	20A	120	100	50	130	151	60	115	Φ4 0	6	50	28	10	3	25	M4

	SOA	200	127	80	170	240	116	150	Φ60	9	70	50	20	31	46	M6

Tolerances		±1	±1	土1	±1	±1	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5

Our Advantages

(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.

(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.

(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.

(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements
