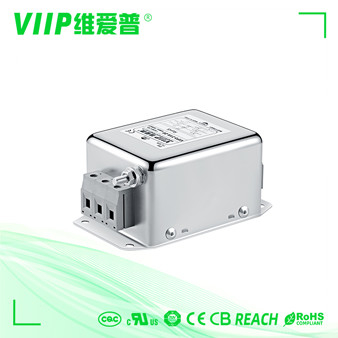

Name: AC Power Inverter 3 Phase EMI Filter For Telecommunication Equipment
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP3-32B-100
Price: 25.00 USD
Availability: InStock

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-32B-100
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Type:

3 PHASE EMI Filter

Package Type:

Sheet Or Roll Shape

Rated Voltage:

110/250VAC

Line To Ground:

2250V DC

Operating Frequency:

50/60HZ

Input Impedance:

50Ω

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Yes

Humidity:

≤95%RH

Supply Ability:

2000pcs per week

Highlight:

Telecommunication Equipment 3 Phase EMI Filter

REACH 3 Phase EMI Filter

AC Power Inverter EMI Filter

Product Description

AC power Inverter 3 Phase EMI Filter For Telecommunication Equipment

VIP3-32B-80(B032S0548) Rev 4.0.pdf

3 Phase EMI Filter Power Description:

1, Rated currents from 0.5 to 2000A

2, High attenuation performance up to 30 MHz

3, Voltage rating 440VAC for worldwide acceptance

4, Approvals: CE, ROHS

5, 520V AC ,690V AC can be optional

3 Phase EMI Filter Power Specification:

Item	VIIP 3-phase 3-line EMI filter
Part Number	VIP3-32B-80
Rated voltage	250/440VAC,50/60Hz
Operating frequency	DC to 60Hz
Rated currents	0.5~2000A@40°C
Hipot Rating	L-L 2250VDC
	L-G 2700VDC
Climatic category	-25°C~+85°C(25/85/21)
Design corresponding to	UL1283, CSA C22.2 No.8,
	IEC/EN 60939,
	CQC GB 15288/GB 15287-2008
Flammability	UL 94V-0

3 Phase EMI Filter Power Specifications:

AC Power Inverter 3 Phase EMI Filter For Telecommunication Equipment 0

Electrical schematic:

Mechanical Dimension(mm):

Part No.	Rated Current [A]	250VAC/50Hz@20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Termial	Weight [g]
VIP3-32B-10	10A	<4 OmA	Fig 2	Fig1	M4	1400
VIP3-32B-20	20A	<4 OmA	Fig 2	Fig1	M4	1400
VIP3-32B-50	50A	<60mA	Fig 2	Fig 1	M6	1600
VIP3-32B-100	100A	<60mA	Fig 2	Fig1	MS	3700
VIP3-32B-150	150A	<60mA	Fig 2	Fig1	M10	7000
VIP3-32B-200	200A	<60mA	Fig 2	Fig1	M10	7000
VIP3-32C-06	6A	<4 OmA	Fig 2	Fig 2	M4	650
VIP3-32C-10	10A	<4 OmA	Fig1	Fig 2	M4	650
VIP3-32C-20	20A	<10 OmA	Fig1	Fig 2	M4	1400
VIP3-32C-50	50A	<15 OmA	Fig 2	Fig 2	M6	3200

3 Phase EMI Filter Power Applications:

such as print machine

packing machine

textile equipment

industry air conditioner

UPS

medical equipment

Laser equipment

Mechanical Dimension(mm):
