3 Phase EMI Filter
>

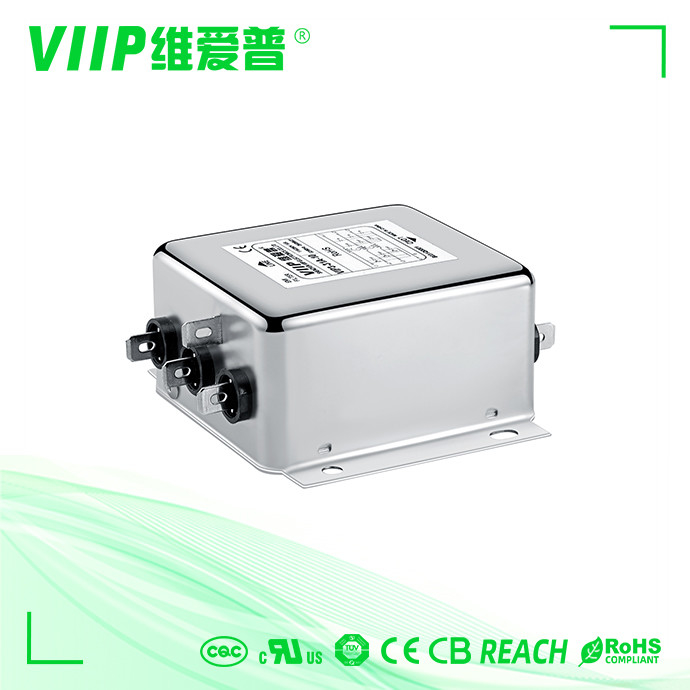

3 Phase AC Line Inverter EMI Filter For Process Control System

3 Phase AC Line Inverter EMI Filter For Process Control System

Brand Name: VIIP
Model Number: VIP3-32B-80
MOQ: 2pcs
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
CE TUV ROHS REACH
Type:
EMI Filter
Package Type:
Sheet Or Roll Shape
Rated Voltage:
120/250VAC
Line To Ground:
2250V DC
Operating Frequency:
50/60HZ
Item:
3 Phase Emi Filter
Supply Ability:
2000pcs per week
Highlight:

2250VDC Inverter EMI Filter

,

ROHS Inverter EMI Filter

,

Inverter 3 Phase EMI Filter

Product Description

3 Phase AC Line Inverter EMI Filter For Process Control System




Description:


1, Rated currents from 0.5 to 2000A

2, High attenuation performance up to 30 MHz

3, Voltage rating 440VAC for worldwide acceptance

4, Approvals: CE, ROHS

5, 520V AC ,690V AC can be optional

Specification:

Item VIIP 3-phase 3-line EMI filter
Part Number VIP3-32B-80
Rated voltage 250/440VAC,50/60Hz
Operating frequency DC to 60Hz
Rated currents 3~200A@40°C
Hipot Rating L-L 2250VDC
  L-G 2700VDC
Climatic category -25°C~+85°C(25/85/21)
Design corresponding to UL1283, CSA C22.2 No.8,
  IEC/EN 60939,
  CQC GB 15288/GB 15287-2008
Flammability UL 94V-0









Specifications:



Part No. Rated Current [A] 250VAC/50Hz@20C
Leakage Current [mA]
Physical Dimensions Electrical Schematics Termial Weight [g]
VIP3-32B-10 10A <4 OmA Fig 2 Fig1 M4 1400
VIP3-32B-20 20A <4 OmA Fig 2 Fig1 M4 1400
VIP3-32B-50 50A <60mA Fig 2 Fig 1 M6 1600
VIP3-32B-100 100A <60mA Fig 2 Fig1 MS 3700
VIP3-32B-150 150A <60mA Fig 2 Fig1 M10 7000
VIP3-32B-200 200A <60mA Fig 2 Fig1 M10 7000
VIP3-32C-06 6A <4 OmA Fig 2 Fig 2 M4 650
VIP3-32C-10 10A <4 OmA Fig1 Fig 2 M4 650
VIP3-32C-20 20A <10 OmA Fig1 Fig 2 M4 1400
VIP3-32C-50 50A <15 OmA Fig 2 Fig 2 M6 3200

3 Phase AC Line Inverter EMI Filter For Process Control System 0



Applications:

such as print machine
packing machine
textile equipment
industry air conditioner
UPS
medical equipment
Laser equipment

Our Company
We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH certification to ensure the product quality

We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.

Free EMC rectification technical support and provide free test sample

Automation technology, scale production, excellent price

Good service, fast delivery!

Cooperate with the top scientific research laboratory

We have a professional R&D team

FAQ:
Q1:How about the certificates?
A:ISO 9001, TUV, UL, CE, CQC, CB, ENEC, ROHS, REACH etc.

Q2: Are you a factory?
A: Yes, we have been a professional manufacturer of EMI&EMC FILTER and ferrite core since 2009.

Q3: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.
