Name: VIIP 10A 3 Phase EMI EMC Low Pass Power Filter For Motor Driver
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP3-32B-100
Price: 25.00 USD
Availability: InStock

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-32B-100
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Product Name:

AC 3 PHASE EMI FILTERS

Rated Voltage:

110/250VAC

Rated Current:

100A

MOQ:

5 PCS

Type:

EMC Filter

Certification:

CE ROHS

Input Impedance:

500VDC/100MOHM MIN

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Yes

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

Motor Driver 3 Phase EMI Filter

EMC Low Pass Power Filter

EMI Low Pass Power Filter

Product Description

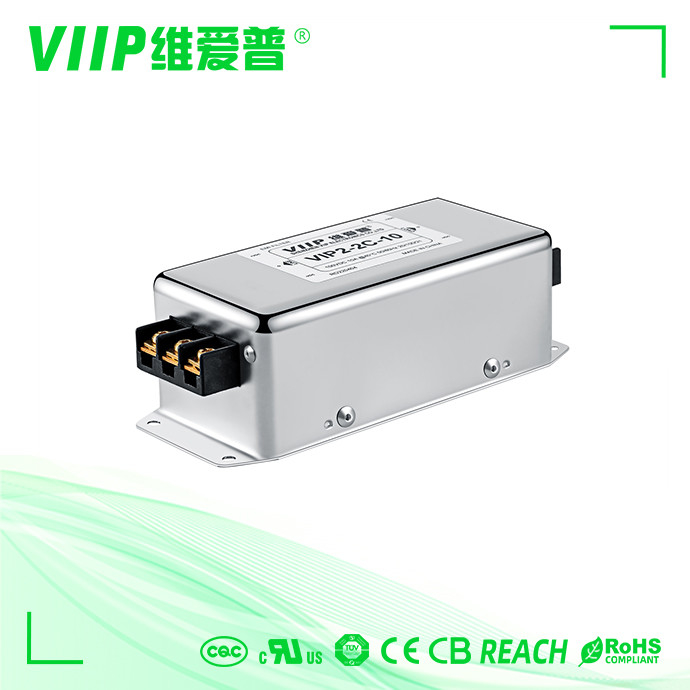

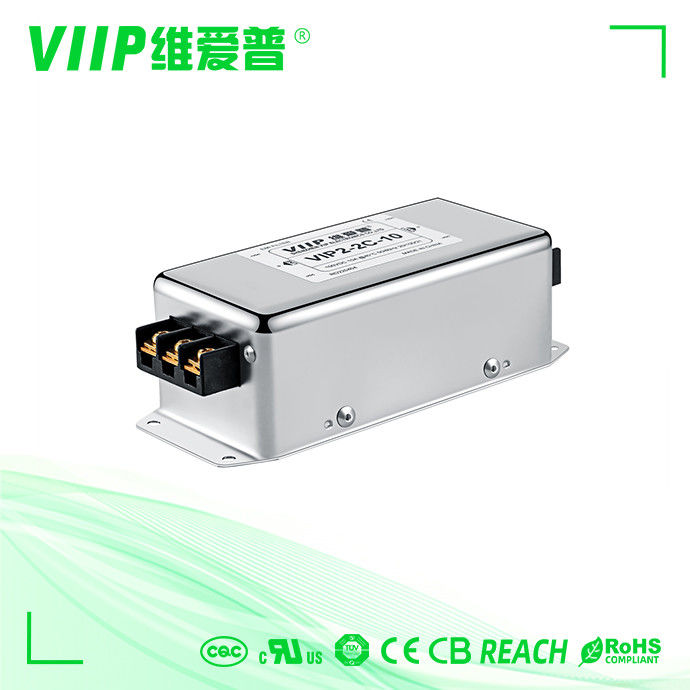

VIIP 3 Phase EMI Filter 10A Low Pass Power Filter For Motor driver

Description:

1, Rated currents from 0.5 to 2000A

2, High attenuation performance up to 30 MHz

3, Voltage rating 440VAC for worldwide acceptance

4, Approvals: CE, ROHS

Specification:

Item	3 Phase EMI Filter
Model	3 Phase EMI Filter - VIP3 Series
Original of country	China
Package Type	Surface Mount
Nominal working Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	380V/440V
Current	100A
MOQ	1 PCS
Temperature	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	2250VDC
Line to Ground	2700VDC
	110VAC/60HZ 1.4mA
MOQ	5pcs
Port	Shenzhen
Leading Time	3~15 weekday for Low Pass EMI Filter

Specifications:

VIIP 10A 3 Phase EMI EMC Low Pass Power Filter For Motor Driver 0

Mechanical Dimension(mm):

VIIP 10A 3 Phase EMI EMC Low Pass Power Filter For Motor Driver 1

Electrical schematic:
VIIP 10A 3 Phase EMI EMC Low Pass Power Filter For Motor Driver 2

		A	B	C	E	F	G	H		J	K	L	M	N	p	Q
VIP3-32B	10A	120	100	50	130	153	60	115	Φ4 0	6	50	28	10	39	25	M4

	20A	120	100	50	130	151	60	115	Φ4 0	6	50	28	10	3	25	M4

	SOA	150	105	60	135	190	90	120	Φ4 0	6	50	35	15	31	52 5	M6

	100A	200	127	80	170	269	116	150	Φ60	9	70	50	20	9	46	MB

	150A	260	170	100	220	324	172	196	Φ80	12	90	65	30	46	63	M10

	200A	260	170	100	220	323	172	196	Φ80	12	90	65	30	42	63	M10

VIP3-32C	6A	96	80	42	105	131	50	95	Φ4 0	6	42	26	9	32	29 5	M4

	10A	96	80	42	105	130	50	95	Φ4 0	6	42	26	9	42	29 5	M4

	20A	120	100	50	130	151	60	115	Φ4 0	6	50	28	10	3	25	M4

	SOA	200	127	80	170	240	116	150	Φ60	9	70	50	20	31	46	M6

Tolerances		±1	±1	土1	±1	±1	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5

Applications:

such as print machine

packing machine

textile equipment

industry air conditioner

UPS

medical equipment

Tags:

3 Phase Ac Line Filter 15A

3 Phase EMC Filter With Screw

380V 440V Noise Filte 3 Phase

Products Details

Home > Products >

3 Phase EMI Filter

VIIP 10A 3 Phase EMI EMC Low Pass Power Filter For Motor Driver

All Category

EMC EMI Filter

Single Phase EMI Filter

3 Phase EMI Filter

Ferrite Rings Around Cables

DC EMI Filters

AC EMI Filter

IEC EMI Filter

Military EMI Filters

Inverter EMI Filter

PCB Low Pass Filter

EMI Suppression Filter

Clip On Ferrite Core

Snap On Ferrite Choke

EMI Ferrite Core

Flat Ferrite Core

VIIP 10A 3 Phase EMI EMC Low Pass Power Filter For Motor Driver

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-32B-100
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

VIIP WeiAiPu

Certification:

CE TUV UL CQC

Model Number:

VIP3-32B-100

Product Name:

AC 3 PHASE EMI FILTERS

Rated Voltage:

110/250VAC

Rated Current:

100A

MOQ:

5 PCS

Type:

EMC Filter

Certification:

CE ROHS

Input Impedance:

500VDC/100MOHM MIN

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Yes

Humidity:

≤95%RH

Minimum Order Quantity:

1 PCS

Price:

Negotiable

Packaging Details:

33*33*18

Delivery Time:

5-10 Days for samples

Payment Terms:

T/T

Supply Ability:

2000 pcs within 10-15 days

Highlight:

Motor Driver 3 Phase EMI Filter

EMC Low Pass Power Filter

EMI Low Pass Power Filter

Product Description

VIIP 3 Phase EMI Filter 10A Low Pass Power Filter For Motor driver

Description:

1, Rated currents from 0.5 to 2000A

2, High attenuation performance up to 30 MHz

3, Voltage rating 440VAC for worldwide acceptance

4, Approvals: CE, ROHS

Specification:

Item	3 Phase EMI Filter
Model	3 Phase EMI Filter - VIP3 Series
Original of country	China
Package Type	Surface Mount
Nominal working Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	380V/440V
Current	100A
MOQ	1 PCS
Temperature	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	2250VDC
Line to Ground	2700VDC
	110VAC/60HZ 1.4mA
MOQ	5pcs
Port	Shenzhen
Leading Time	3~15 weekday for Low Pass EMI Filter

Specifications:

VIIP 10A 3 Phase EMI EMC Low Pass Power Filter For Motor Driver 0

Mechanical Dimension(mm):

VIIP 10A 3 Phase EMI EMC Low Pass Power Filter For Motor Driver 1

Electrical schematic:
VIIP 10A 3 Phase EMI EMC Low Pass Power Filter For Motor Driver 2

		A	B	C	E	F	G	H		J	K	L	M	N	p	Q
VIP3-32B	10A	120	100	50	130	153	60	115	Φ4 0	6	50	28	10	39	25	M4

	20A	120	100	50	130	151	60	115	Φ4 0	6	50	28	10	3	25	M4

	SOA	150	105	60	135	190	90	120	Φ4 0	6	50	35	15	31	52 5	M6

	100A	200	127	80	170	269	116	150	Φ60	9	70	50	20	9	46	MB

	150A	260	170	100	220	324	172	196	Φ80	12	90	65	30	46	63	M10

	200A	260	170	100	220	323	172	196	Φ80	12	90	65	30	42	63	M10

VIP3-32C	6A	96	80	42	105	131	50	95	Φ4 0	6	42	26	9	32	29 5	M4

	10A	96	80	42	105	130	50	95	Φ4 0	6	42	26	9	42	29 5	M4

	20A	120	100	50	130	151	60	115	Φ4 0	6	50	28	10	3	25	M4

	SOA	200	127	80	170	240	116	150	Φ60	9	70	50	20	31	46	M6

Tolerances		±1	±1	土1	±1	±1	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5

Applications:

such as print machine

packing machine

textile equipment

industry air conditioner

UPS

medical equipment
