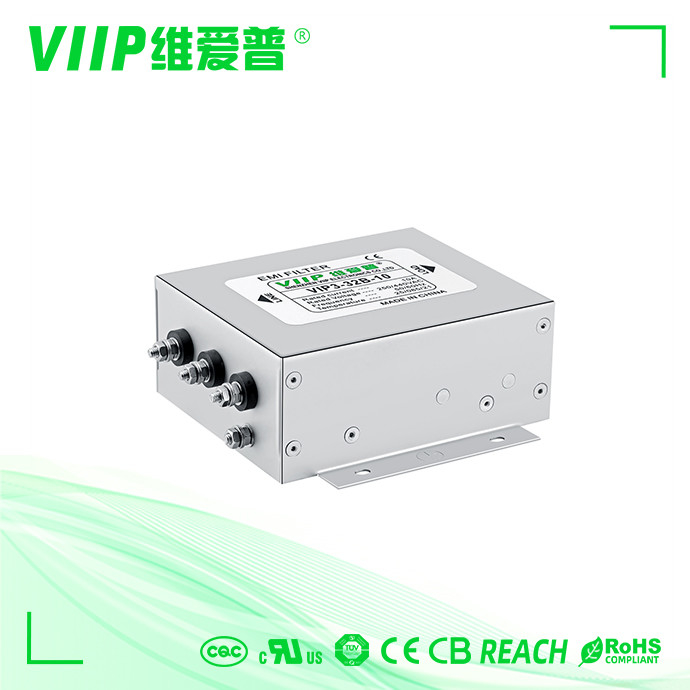

Name: 50A 3 Phase EMI Filter , Power Management System Three Phase Line Filter
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP3-32B-50
Price: 25.00 USD
Availability: InStock

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-32B-50
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Product Name:

AC 3 PHASE EMI FILTERS

Rated Current:

50A

Type:

EMC Filter

Rated Voltage:

110/250VAC

Certification:

CE ROHS

Insertion Loss:

60dB-90dB

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Yes

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

60dB 3 Phase EMI Filter

90dB 3 Phase EMI Filter

50A Three Phase Line Filter

Product Description

50A 3 Phase EMI Filter Three Phase Line Filter For Power Management System

Description:

1, Rated currents from 0.5 to 2000A

2, High attenuation performance up to 30 MHz

3, Voltage rating 440VAC for worldwide acceptance

4, Approvals: CE, ROHS

5, 520V AC ,690V AC can be optional

Specification:

Item	3 Phase EMI Filter
Model	3 Phase EMI Filter - VIP3 Series
Original of country	China
Package Type	Surface Mount
Nominal working Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	380V/440V
Current	50A
Working Temperature	40°C
Climatic category	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	2250VDC
Line to Ground	2700VDC
	110VAC/60HZ 1.4mA
MOQ	5pcs
Port	Shenzhen
Leading Time	3~15 days for Low Pass EMI Filter

Specifications:

50A 3 Phase EMI Filter , Power Management System Three Phase Line Filter 0

50A 3 Phase EMI Filter , Power Management System Three Phase Line Filter 1

Features:

Protection against interference of voltage.
Advanced two-stage filtering circuits with high saturating resistant toroidal inductors
Customized products according to customer's requirements

Typical Applications:

Applications requiring high-frequency attenuation
High power office equipment
Office and data processing equipment
medical equipment
datacom equipment

Electrical schematic:

Tabulates:

Part No.	Rated Current [A]	250VAC/50Hz@20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Termial	Weight [g]
VIP3-32B-10	10A	<4 OmA	Fig 2	Fig1	M4	1400
VIP3-32B-20	20A	<4 OmA	Fig 2	Fig1	M4	1400
VIP3-32B-50	50A	<60mA	Fig 2	Fig 1	M6	1600
VIP3-32B-100	100A	<60mA	Fig 2	Fig1	MS	3700
VIP3-32B-150	150A	<60mA	Fig 2	Fig1	M10	7000
VIP3-32B-200	200A	<60mA	Fig 2	Fig1	M10	7000
VIP3-32C-06	6A	<4 OmA	Fig 2	Fig 2	M4	650
VIP3-32C-10	10A	<4 OmA	Fig1	Fig 2	M4	650
VIP3-32C-20	20A	<10 OmA	Fig1	Fig 2	M4	1400
VIP3-32C-50	50A	<15 OmA	Fig 2	Fig 2	M6	3200

Mechanical Dimension(mm):

50A 3 Phase EMI Filter , Power Management System Three Phase Line Filter 2

		A	B	C	E	F	G	H		J	K	L	M	N	p	Q
VIP3-32B	10A	120	100	50	130	153	60	115	Φ4 0	6	50	28	10	39	25	M4

	20A	120	100	50	130	151	60	115	Φ4 0	6	50	28	10	3	25	M4

	SOA	150	105	60	135	190	90	120	Φ4 0	6	50	35	15	31	52 5	M6

	100A	200	127	80	170	269	116	150	Φ60	9	70	50	20	9	46	MB

	150A	260	170	100	220	324	172	196	Φ80	12	90	65	30	46	63	M10

	200A	260	170	100	220	323	172	196	Φ80	12	90	65	30	42	63	M10

VIP3-32C	6A	96	80	42	105	131	50	95	Φ4 0	6	42	26	9	32	29 5	M4

	10A	96	80	42	105	130	50	95	Φ4 0	6	42	26	9	42	29 5	M4

	20A	120	100	50	130	151	60	115	Φ4 0	6	50	28	10	3	25	M4

	SOA	200	127	80	170	240	116	150	Φ60	9	70	50	20	31	46	M6

Tolerances		±1	±1	土1	±1	±1	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5
