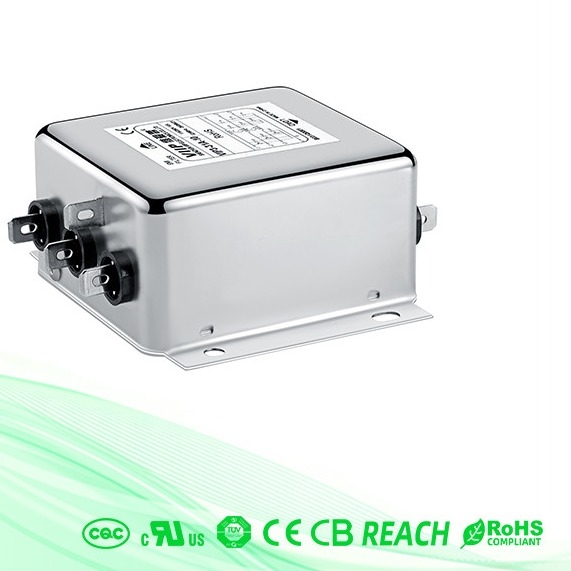

Name: 380V 440V 3 Wire Three Phase EMI Filter For Process Control System
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP3-32B-10
Price: 25.00 USD
Availability: InStock

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-32B-10
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Transfer Function:

General Purpose

Rated Voltage:

110/250VAC

Rated Current:

10A

Certification:

CE ROHS,ISO & TUV

Application:

Electronic Equipments

Case:

Metal

Input Impedance:

500VDC/100MOHM MIN

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Yes

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

ISO 3 Phase Emi Filter

2000A Three Phase EMI Filter

30MHZ Three Phase EMI Filter

Product Description

380V 440V 3 Phase Emi Filter 3 Wire For Process control system

Description:

suitable for three phase three line power supply

compact structure ,simple and time-saving installation,specially suitable for applications with limited space ,highly cost effective

Specification:

Item	3 Phase EMI Filter
Model	VIP3-32B-10
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	0.5~2000A
Environmental Temperature	40°C
Temperature Range	-25℃~+85℃
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	0.4mA/115V,60HZ; 0.8mA/250V, 50HZ
MOQ	Negotiated
Price	Negotiated
Lead Time	15~20 workdays

More details:

380V 440V 3 Wire Three Phase EMI Filter For Process Control System 0

380V 440V 3 Wire Three Phase EMI Filter For Process Control System 1

Applications:

Widely used all kinds of electrical unit with ⛛ connection style,such as print machine ,packing machine ,textile equipment ,industry air conditioner ,UPS ,medical equipment .etc
