Single Phase EMI Filter
>

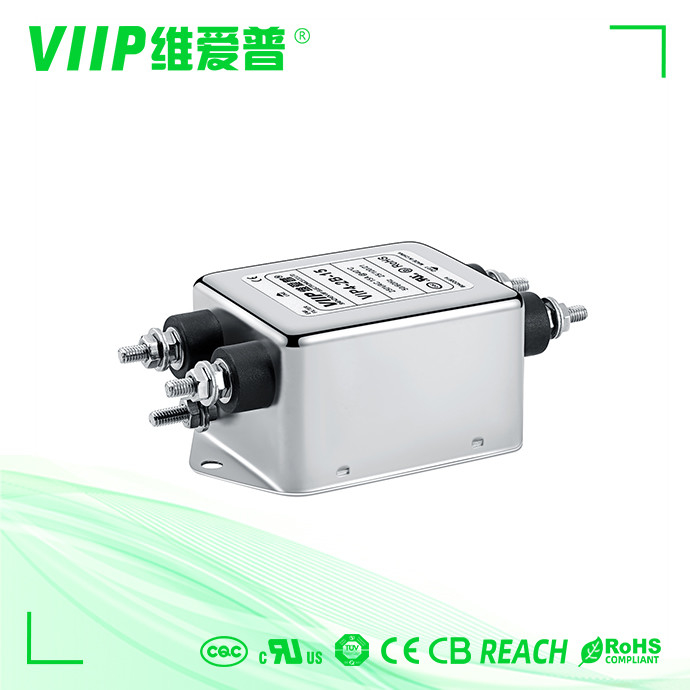

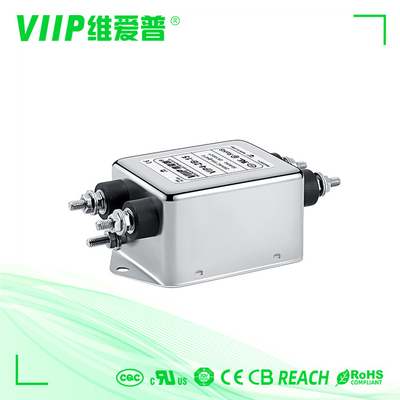

Rated Current 1A-10A AC Single Phase RFI Filter For Fitness Equipment

Rated Current 1A-10A AC Single Phase RFI Filter For Fitness Equipment

Brand Name: VIIP
Model Number: VIP4-2B-03
MOQ: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE TUV UL ROHS REACH
Type:
AC SINGLE PHASE FILTER
Rated Voltage:
110/250VAC
Certification:
CE ROHS,CE CQC,ISO; TUV
MOQ:
1PCS
Application:
Fitness Equipment
Package Type:
Surface Mount
Supply Ability:
2000 pcs within 10-15 days
Highlight:

Fitness Equipment Single Phase RFI Filter

,

1A Single Phase RFI Filter

,

10A Single Phase EMI Filter

Product Description

SMPS AC Single Phase RFI Filter Rated Current 1A-10A for air purifier



Quick Detail:



Place of Origin China
Model Number VIP4-2B-03
Current 3A
Type AC EMI Single phase Filter
Line To Line 1760VDC
Line to ground 2000VAC
Certificate ISO9001 CE Rohs Reach
Operating Frequency 50/60HZ
Temperature Range  25 / 085 / 21



We offer AC single phase to suit the needs of your industry. We manufacture RFI filters for aerospace, telecom, military and medical applications, as well as a variety of other industries. We are experienced in manufacturing many types of filters like our single phase RFI filters, medical filters, power entry filters, DC filters and three phase RFI filters.Single phase filters from Curtis Industries are used to reduce the EMI in 250VAC applications. Our single phase filters are great for many industries and are available in three different types including general purpose, high performance and wide band. These RFI filters are ideal for reducing EMI in the military, commercial appliances, switching power supplies and telecommunications.



Applications:

White household

Smart home

Smart terminal

Power supply

charging post

Air purifier



Specifications:



Part No. Rated Current [A] 250VAC/50Hz @ 20C
Leakage Current [mA]
Physical Dimensions Electrical Schematics Terminals Weight [g]
screw terminal block wires
VIP4-2A-01 1A <0.5mA Fig 2 Fig 1 - - - - - - 0 95
VIP4-2A-03 3A <0.5mA Fig 2 Fig 1 - - - - - - 0 95
VIP4-2A-06 6A <0.5mA Fig 2 Fig 1 - - - - - - 0 95
VIP4-2A-10 10A <1.0mA Fig4 Fig 1 - - - 0 - - - 170
VIP4-2B-06 6A <1.0mA Fig4 Fig 2 M4 0 - - - 170
VIP4-2B-10 10A <1.0mA Fig4 Fig 2 M4 0 - - - 170
VIP4-2B-20 20A <1.0mA Fig4 Fig 2 M4 0 - - - 321
VIP4-2B -50 50A <2.0mA Fig 5 Fig 2 M6 - - - - - - 1400
VIP4-2B-100 100A <2.0mA Fig 5 Fig 2 M6 - - - - - - 2000
VIP4-2B-200 200A <2.0mA Fig 5 Fig 2 M8 - - - - - - 3000
VIP4-2C-01 1A <0.5mA Fig 1 Fig 3 M10 - - - 0 65
VIP4-2C-03 3A <0.5mA Fig 2 Fig 3 M10 - - - 0 95
VIP4-2C-06 6A <1.0mA Fig4 Fig 3 M4 0 - - - 175
VIP4-2C-10 10A <1.0mA Fig4 Fig 3 M4 0 - - - 175
VIP4-2C-20 20A <1.0mA Fig 5 Fig 3 M4 - - - - - - 600
VIP4-2C-50 50A <2.0mA Fig 5 Fig 3 M6 - - - - - - 1600



Electrical schematic:

Rated Current 1A-10A AC Single Phase RFI Filter For Fitness Equipment 0

Mechanical Dimension(Unit: mm)

Our Advantages

(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.
(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.
(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.
(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements





  •



Rated Current 1A-10A AC Single Phase RFI Filter For Fitness Equipment 1Rated Current 1A-10A AC Single Phase RFI Filter For Fitness Equipment 2

FAQ:



Q: Can you provide some samples before ordering formally?
A:Yes, samples can be provided.

Q: How can I pay?
A:T/T

Q:Do you provide customized products?
A:Yes, we can provide customized products.

Q:Do you test all products before shipping?
A:All the products will be 100% checked before the shipment.
s.
