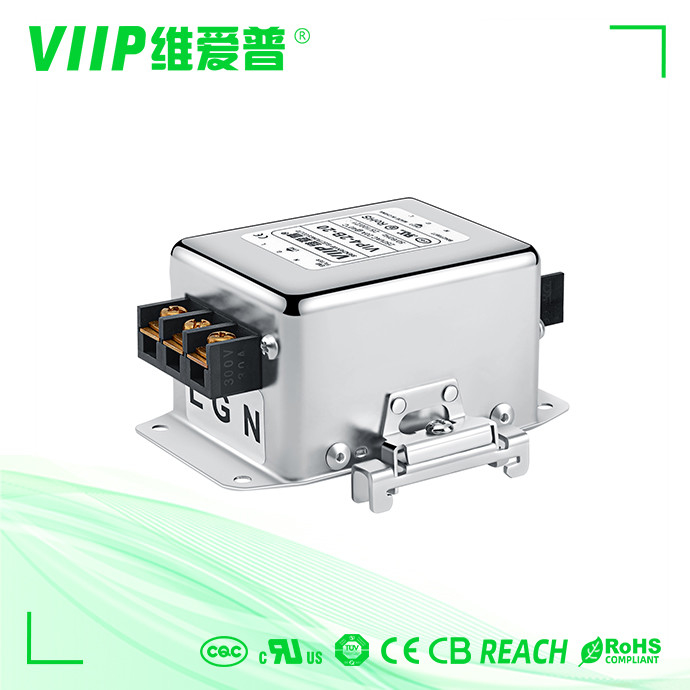

Power EMC Special Single Phase EMI Filters For Medical Equipment DIN Rail Mounting

Certification
China Shenzhen VIIP Electronics Co., Ltd. certification
China Shenzhen VIIP Electronics Co., Ltd. certification
Customer Reviews
The core is very good, and The shipment was quick. It was a good deal. Thank very much.

—— Warren Taylor

Very fast to get the line filter . and they are excellent quality . also when you have the questions ,they can give me fast response .

—— Sam hant

When I placed an urgent order , After they get this order .they try their best to delivery them to me within 3 days .I am very appreciate about it .Excellent service .

—— Manuel Ferreira

I have installed the filters for 2 months and no issues were found. They help remove a significant amount of electromagnetic noises and improve the performance of my equipment.

—— Rose clark

The quality of the filters is excellent. They are well-constructed with rugged components. The noise attenuation performance is as specified in the product description and meets my requirements.

—— Sam selvaraj

I'm Online Chat Now

Power EMC Special Single Phase EMI Filters For Medical Equipment DIN Rail Mounting

Power EMC Special Single Phase EMI Filters For Medical Equipment DIN Rail Mounting
Power EMC Special Single Phase EMI Filters For Medical Equipment DIN Rail Mounting
Power EMC Special Single Phase EMI Filters For Medical Equipment DIN Rail Mounting Power EMC Special Single Phase EMI Filters For Medical Equipment DIN Rail Mounting

Large Image :  Power EMC Special Single Phase EMI Filters For Medical Equipment DIN Rail Mounting

Product Details:
Place of Origin: China
Brand Name: VIIP
Model Number: VIP4-1A-03
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs within 10-15 days

Power EMC Special Single Phase EMI Filters For Medical Equipment DIN Rail Mounting

Description
Certification: CE ROHS,CE CQC,ISO TUV Type: EMI FILTER
Rated Current: 3A Rated Voltage: 110/250VAC
Case: Metal Filter Usage: Medical Applications
High Light:

Power EMC Single Phase EMI Filters

,

110VAC Single Phase EMI Filters

,

DIN Rail Mounting EMC EMI Filter

Special EMC Filters For Medical Equipment Power Emi Filter DIN Rail Mounting

emi filter Quick Detail:



Place of Origin: China Input Impedance: 50Ω
Model Number: VIP4-1B-03 Rated current: 3A
Brand Name: VIIP Rated voltage: 110V/250V
Type:AC EMI Filter Insertion Loss: 30-100dB
 Function: Low Pass Line To Line: 1760VDC
Nominal Center Frequency: 150KHZ~30MHZ Line to ground: 2000VAC
Port: SHENZHEN Certificate: ISO9001 CE ROHS UL TUV
MOQ: 1PCS Operating Frequency: 50/60HZ
Package Type: Surface Mount Temperature Range: 25 / 085 / 21



General purpose single phase AC power line filters ,easy to install ,available for small electronic equipment’s and measuring instrument



The medical industry has very specific parameters that must be met for components in a system and EMI filters are included in this. There are regulations that not only define the performance of the filter but also limit the leakage current to ground for filters used in medical applications. These regulations are due to the fact that medical equipment is extremely sensitive, very precise, and deals with people’s health.



Leakage current is caused by having components, in particular capacitors, that are connected between the line and ground; allowing current to flow or ‘leak’ onto the ground plane. VIIP offers a complete line of EMI-RFI single-phase, 3-phase and 3-phase plus neutral filters with very low leakage current or zero leakage current. This series typically filters from 150 KHz to 30 MHz.







Specifications:

Power EMC Special Single Phase EMI Filters For Medical Equipment DIN Rail Mounting 0



Power EMC Special Single Phase EMI Filters For Medical Equipment DIN Rail Mounting 1

Applications:



Electrical & electronic equipment

Consumer goods

medical equipment

datacome equipment



  •



Power EMC Special Single Phase EMI Filters For Medical Equipment DIN Rail Mounting 2
