| Brand Name: | VIIP |
| Model Number: | VIP4-1B-30 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |
| Input Impedance | 50Ω |
| Model Number | VIP4-1B-30 |
| Rated voltage | 110V/250V |
| Type | AC EMI Filter |
| Transfer Function | Low Pass |
| Nominal Center Frequency | 150KHZ~30MHZ |
| Certificated | ISO9001 CE ROHS cUL TUV |
| MOQ | 1PCS |
| Package Type | Surface mounted |

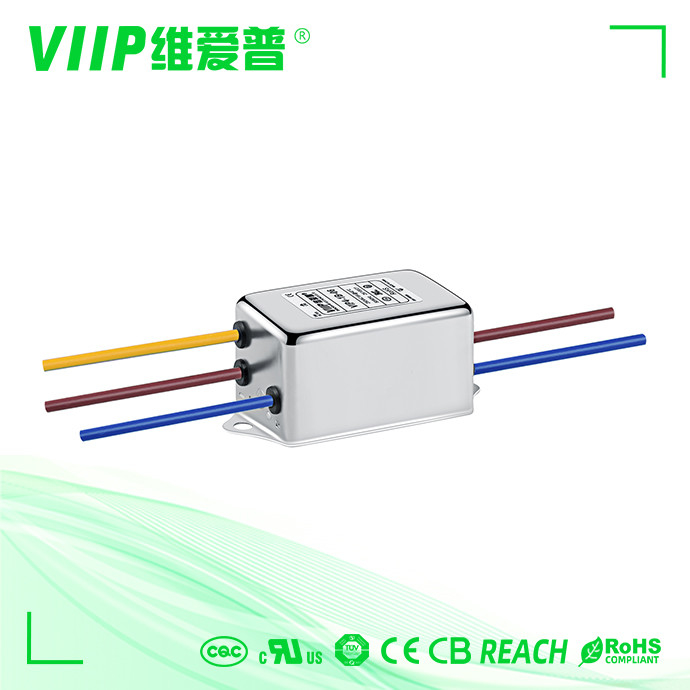

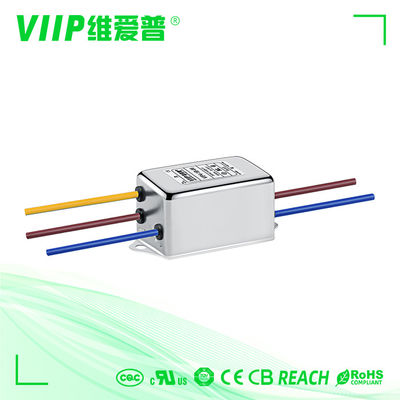

General purpose single phase AC power line filters ,easy to install ,available for small electronic equipment’s and measuring instrument
Designed for general purpose, common mode and differential mode applications
Protection from pulsed, intermittent, or continuous RFI
Higher line-to-line attenuation for protection from pulsed, intermittent, or continuous RFI
FASTON, Stud, Wire Lead are available
Specifications:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
| screw | terminal block | wires | ||||||
| VIP4-1A-01 | 1A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-03 | 3A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-06 | 6A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-10 | 10A | <0.5mA | Fig 2 | Fig 1 | - - - | 0 | - - - | 75 |
| VIP4-1B-06 | 6A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 140 |
| VIP4-1B-10 | 10A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-20 | 20A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-30 | 30A | <1.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 320 |
| VIP4-1B-50 | 50A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 600 |
| VIP4-1B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 1380 |
| VIP4-1B-150 | 150A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
| VIP4-1B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
Electrical schematic:
Mechanical Dimension(Unit: mm)
Applications:
White household
Smart home
Smart terminal
Power supply
Power & energy
Electrical & electronic equipment
Consumer goods
medical device
datacome equipment
FAQ:
Q:Do you offer a customized product?
A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.
Q: Are you an ISO9001 manufacturer?
A: Yes, we are a professional manufacturer of EMI filter designing and manufacturing since 2009.
Q: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us
Q: How about the payment terms?
A: we also accept T/T Western Union, Paypal, etc.
Q: How about the certificates?
A: ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.
|
|
