| Brand Name: | VIIP |
| Model Number: | VIP4-1B-20 |
| MOQ: | 100 PCS |
| Price: | negotiate |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |
Single-phase EMI Filters suppress the electrical noise of a wide range of appliances and equipment. We offer off-the-shelf Single-Phase Filters available from 0.5A to 300A. As well as custom current ratings of up to 300A. Single-phase EMI/RFI filters are used to bring electrical and electronic products into compliance with national and international EMC standards. They carry CE, UL, and CSA approvals.
| Place of Origin: China | Input Impedance: 50Ω |
| Model Number: VIP4-1B-30 | Rated current: 20A |
| Brand Name: VIIP | Rated voltage: 110V/250V |
| Type:AC EMI Filter | Insertion Loss: 30-100dB |
| Transfer Function: Low Pass | Line To Line: 1760VDC |
| Nominal Center Frequency: 150KHZ~30MHZ | Line to ground: 2000VAC |
| Port: SHENZHEN | Certificate: ISO9001 CE ROHS TUV |
| MOQ: 1PCS | Operating Frequency: 50/60HZ |
| Package Type: Surface Mount | Temperature Range: 25 / 085 / 21 |
General purpose single phase AC power line filters ,easy to install ,available for small electronic equipment’s and measuring instrument

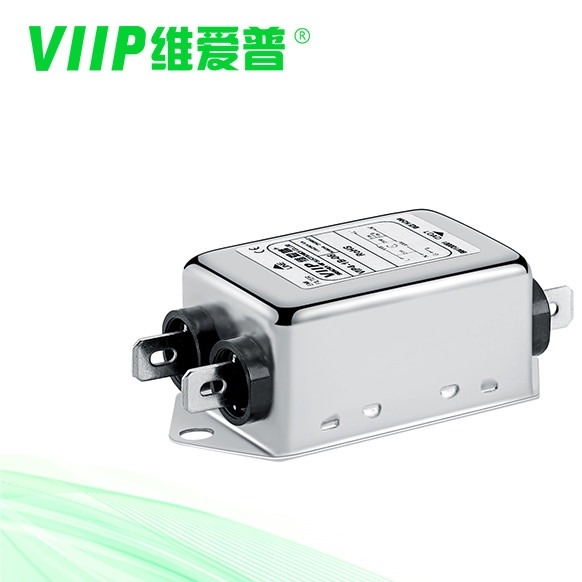

Metal Case 1760VDC AC Line EMI Filter Single Phase RFI Filters
Specifications:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
| screw | terminal block | wires | ||||||
| VIP4-1A-01 | 1A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-03 | 3A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-06 | 6A | <0.5mA | Fig 1 | Fig 1 | - - - | - - - | 0 | 65 |
| VIP4-1A-10 | 10A | <0.5mA | Fig 2 | Fig 1 | - - - | 0 | - - - | 75 |
| VIP4-1B-06 | 6A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 140 |
| VIP4-1B-10 | 10A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-20 | 20A | <1.0mA | Fig 3/Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-1B-30 | 30A | <1.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 320 |
| VIP4-1B-50 | 50A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 600 |
| VIP4-1B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 1380 |
| VIP4-1B-150 | 150A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
| VIP4-1B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M10 | - - - | - - - | 1900 |
Electrical schematic:
Mechanical Dimension(Unit: mm)
Applications:
White household
Smart home
Smart terminal
Power supply
Power & energy
Electrical & electronic equipment
Consumer goods
medical device
FAQ:
Q1: Do you offer customized product ?
A: Yes, we can develop a new mold at you need if you can provide us with the samples or drawings and specification.
Q2: Are you a factory?
A: Yes, we are an ISO9001 manufacturer, an integration of EMI filter R&D, production and sales since 2009.
Q3: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.
|
