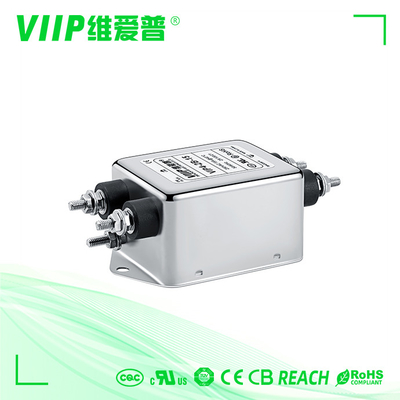

Power AC Line EMC Emi Filter 3A 110V 250V For Exercise Equipment

Brand Name:	VIIP WeiAiPu
Model Number:	VIP4-1A-03(B041Q0613)
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Type:

EMI EMC Filter

Transfer Function:

Low Pass

Temperature Range:

25 / 085 / 21

Case:

Metal

Operating Frequency:

50/60HZ

Application:

Fitness Fixture

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

3A EMC Emi Filter

Exercise Equipment EMC Emi Filter

UL AC Line Emi Filter

Product Description

Power Line AC Line EMC Emi Filter 20A 110V 250V For exercise equipment

VIP4-1A-03(B041Q0613) Rev 4.0.pdf

Quick Detail:

Item	EMC EMI Filter
Model	VIP4-1A-03(B041Q0613)
Original of country	China
Package Type	Surface Mount
Nominal Center Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	0.5~300A
Environmental Temperature	40°C
Temperature Range	-25℃~+85℃
Operating Frequency	50/60HZ
Line to Line	1760VDC
Line to Ground	2000VDC
Maximum Leakage Current	0.4mA/115V,60HZ; 0.8mA/250V, 50HZ
MOQ	Negotiated
Price	Negotiated
Lead Time	15~20 workdays

Tabulates:

Model No.	Rated Current	Terminal Options*			Leakage current 250V/50Hz	Electrical Schematic	Rated Voltage(V)	Operating Frequency(Hz)
	@40°C	Terminal Options*
		Screw	fast on	wire
VIP4-1A-01	1A	--	--	W	<0.5mA	Fig.1	115/250V	50/60Hz
VIP4-1A-03	3A	--	--	W	<0.5mA
VIP4-1A-06	6A	--	--	W	<0.5mA	Fig.1
VIP4-1A-10	10A	--	O	--	<0.5mA	Fig.1
VIP4-1B-06	6A	M4	O	--	<0.10mA	Fig.2
VIP4-1B-10	10A	M4	O	--	<0.10mA	Fig.2
VIP4-1B-20	20A	M4	O	--	<0.10mA	Fig.2
VIP4-1B-30	30A	M6	--	--	<0.10mA	Fig.2
VIP4-1B-50	50A	M6	--	--	<0.20mA	Fig.2
VIP4-1B-100	100A	M8	--	--	<0.20mA	Fig.2
VIP4-1B-150	150A	M10	--	--	<0.20mA	Fig.2
VIP4-1B-200	200A	M10	--	--	<0.20mA	Fig.2

Electrical schematic:

Power AC Line EMC Emi Filter 3A 110V 250V For Exercise Equipment 0

Features:

-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device

-- Various terminal options allow you to select

-- There are a variety of parts and combinations to meet different customer's EMC tests.

-- Customized products according to customer's requirements.

Specifications:

Power AC Line EMC Emi Filter 3A 110V 250V For Exercise Equipment 1

FAQ:

Q1: Do you offer customized product ?
A: Yes, we can develop a new mold at you need if you can provide us with the samples or drawings and specification.

Q2: Are you a factory?
A: Yes, we are an ISO9001 manufacturer, an integration of EMI filter R&D, production and sales since 2009.

Q3: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.

Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than 5000USD, we can negotiate about the payment term,like 70% deposit in advance 30% pay before delivery, etc.
Q5: How about the certificates?
A:ISO9001,CE, TUV, UL, ROHS, CQC, REACH etc.

Q6: How about the sample?
A: Free samples. You need to pay for Currier cost. Please contact us for details.

Q7: What are services available after-sale?

A: Free replacement within three-month, free maintenance within six-year, life-long maintenance.

Q8: Shipping terms

A: DHL, UPS, FedEx, TNT, EMS AIR OR BY SHIP
