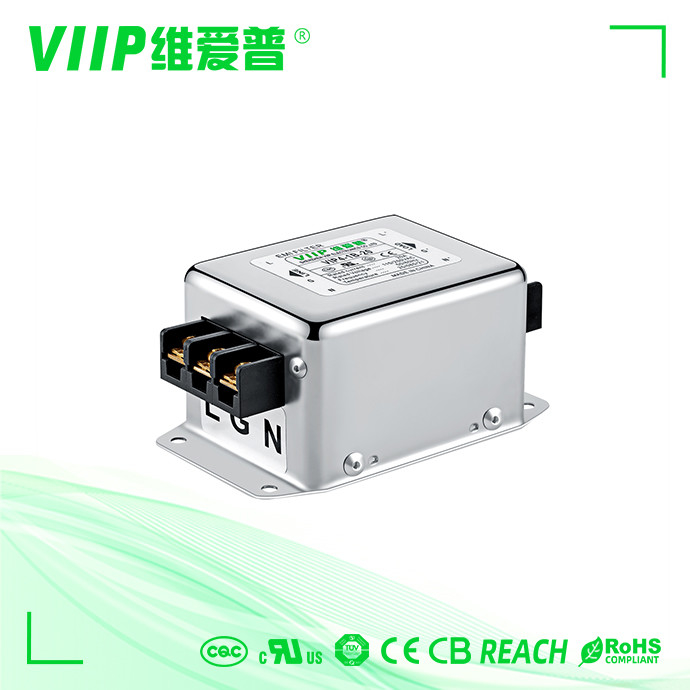

Product Details:
|
| Type: | EMI EMC Filter | Transfer Function: | Low Pass |
|---|---|---|---|
| Temperature Range: | 25 / 085 / 21 | Operating Frequency: | 50/60HZ |
| Application: | Fitness Fixture | MOQ: | 1 Pcs |
| High Light: | Fitness Fixture EMC EMI Filter,Metal Case AC EMI Filter,TUV AC EMI Filter |
||
VIP4-1A-06(A041W0584) Rev 4.0.pdf
| Item number | VIP4-1A-06(A041W0584) |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10KHZ-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 110V/250V |
| Rated Current | 6A |
| Original of Country | China |
| Temperature | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1760VDC |
| Line to Ground | 2200VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 1 pcs |
| Packing | neutral packing |
| Lead Time | 5~15 weekly days |
Tabulates:
| Model No. | Rated Current | Terminal Options* | Leakage current 250V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) | ||
| @40°C | ||||||||
| Screw | fast on | wire | ||||||
| VIP4-1A-01 | 1A | -- | -- | W | <0.5mA | Fig.1 | 115/250V | 50/60Hz |
| VIP4-1A-03 | 3A | -- | -- | W | <0.5mA | |||
| VIP4-1A-06 | 6A | -- | -- | W | <0.5mA | Fig.1 | ||
| VIP4-1A-10 | 10A | -- | O | -- | <0.5mA | Fig.1 | ||
| VIP4-1B-06 | 6A | M4 | O | -- | <0.10mA | Fig.2 | ||
| VIP4-1B-10 | 10A | M4 | O | -- | <0.10mA | Fig.2 | ||
| VIP4-1B-20 | 20A | M4 | O | -- | <0.10mA | Fig.2 | ||
| VIP4-1B-30 | 30A | M6 | -- | -- | <0.10mA | Fig.2 | ||
| VIP4-1B-50 | 50A | M6 | -- | -- | <0.20mA | Fig.2 | ||
| VIP4-1B-100 | 100A | M8 | -- | -- | <0.20mA | Fig.2 | ||
| VIP4-1B-150 | 150A | M10 | -- | -- | <0.20mA | Fig.2 | ||
| VIP4-1B-200 | 200A | M10 | -- | -- | <0.20mA | Fig.2 | ||
Features:
-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device
-- Various terminal options allow you to select
-- There are a variety of parts and combinations to meet different customer's EMC tests.
-- Customized products according to customer's requirements.
Specifications:
Our Advantages
(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.
(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.
(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.
FAQ:
Q1:How about the certificates?
A:ISO 9001, TUV, UL, CE, CQC, CB, ENEC, ROHS, REACH etc.
Q2: Are you a factory?
A: Yes, we have been a professional manufacturer of EMI&EMC FILTER and ferrite core since 2009.
Q3: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.
Q4: How about the payment terms?
A: We usually require T/T in advance. we also accept other payment methods.
