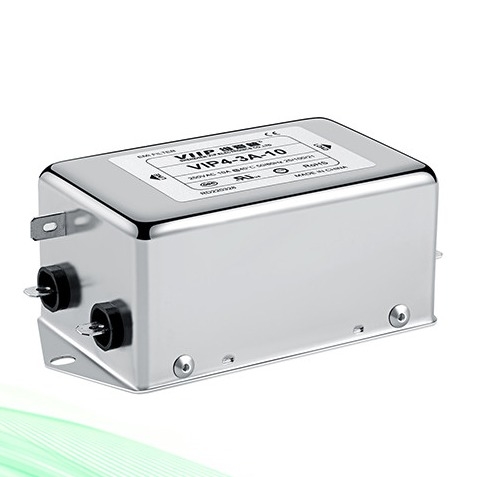

ROHS 3A Metal Case AC EMC EMI Filter For Ultrasonic Cleanners

ROHS 3A Metal Case AC EMC EMI Filter For Ultrasonic Cleanners
ROHS 3A Metal Case AC EMC EMI Filter For Ultrasonic Cleanners
ROHS 3A Metal Case AC EMC EMI Filter For Ultrasonic Cleanners ROHS 3A Metal Case AC EMC EMI Filter For Ultrasonic Cleanners

Large Image :  ROHS 3A Metal Case AC EMC EMI Filter For Ultrasonic Cleanners

Product Details:
Place of Origin: China
Brand Name: VIIP
Certification: CE UL TUV ROHS REACH
Model Number: VIP4-1A-03(B041W0891)
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs within 10-15 days

ROHS 3A Metal Case AC EMC EMI Filter For Ultrasonic Cleanners

Description
Type: EMI EMC Filter Transfer Function: Low Pass
Temperature Range: 25 / 085 / 21 Operating Frequency: 50/60HZ
Application: CLEANERS MOQ: 1 Pcs
High Light:

ROHS AC EMI Filter

,

Metal Case EMC EMI Filter

,

Ultrasonic Cleanners AC EMI Filter

AC EMC EMI Filter 3A Metal Case For Ultrasonic Cleanners

VIP4-1A-03(B041W0891) Rev 4.0.pdf

Quick Detail:



Item number VIP4-1A-03(B041W0891)
Package Type Surface Mount
Nominal Center Frequency 10KHZ-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 3A
Original of Country China
Temperature 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1760VDC
Line to Ground 2200VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 1 pcs
Packing neutral packing
Lead Time 5~15 weekly days

Tabulates:



Model No. Rated Current Terminal Options* Leakage current 250V/50Hz Electrical Schematic Rated Voltage(V) Operating Frequency(Hz)
  @40°C
  Screw fast on wire
VIP4-1A-01 1A -- -- W <0.5mA Fig.1 115/250V 50/60Hz
VIP4-1A-03 3A -- -- W <0.5mA
VIP4-1A-06 6A -- -- W <0.5mA Fig.1
VIP4-1A-10 10A -- O -- <0.5mA Fig.1
VIP4-1B-06 6A M4 O -- <0.10mA Fig.2
VIP4-1B-10 10A M4 O -- <0.10mA Fig.2
VIP4-1B-20 20A M4 O -- <0.10mA Fig.2
VIP4-1B-30 30A M6 -- -- <0.10mA Fig.2
VIP4-1B-50 50A M6 -- -- <0.20mA Fig.2
VIP4-1B-100 100A M8 -- -- <0.20mA Fig.2
VIP4-1B-150 150A M10 -- -- <0.20mA Fig.2
VIP4-1B-200 200A M10 -- -- <0.20mA Fig.2



Features:



-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device



-- Various terminal options allow you to select



-- There are a variety of parts and combinations to meet different customer's EMC tests.



-- Customized products according to customer's requirements.



Specifications:

ROHS 3A Metal Case AC EMC EMI Filter For Ultrasonic Cleanners 0



Our Advantages



(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.


(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.


(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.





  •
