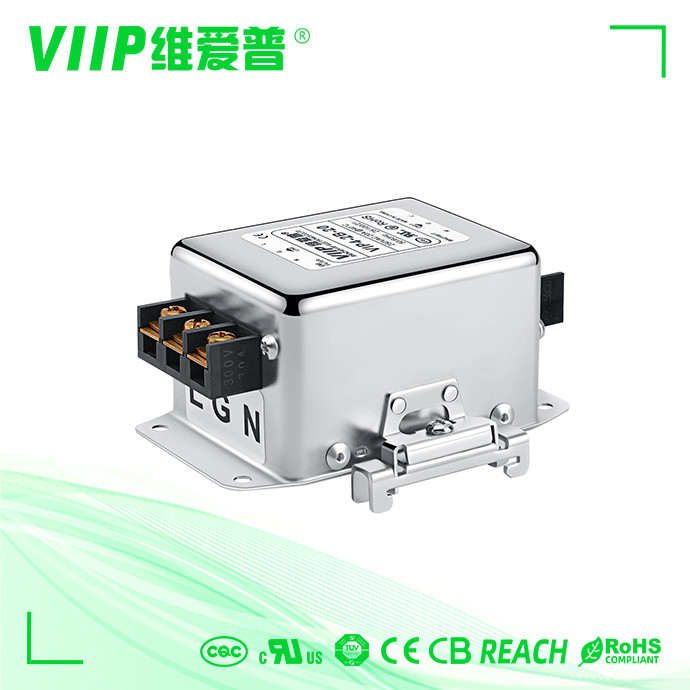

EMI EMC Low Pass Filter Metal Case For Food Service Equipment

Brand Name:	VIIP WeiAiPu
Model Number:	VIP4-1A-03(B041W0717)
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Type:

EMI EMC Filter

Application:

Food Service Equipment

Certification:

CE ROHS,ISO; TUV

Rated Current:

Temperature Range:

25 / 085 / 21

Port:

Shenzhen

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

REACH Certified EMC EMI Filter

EMI EMC Low Pass Filter

Food Service Equipment EMC EMI Filter

Product Description

Low Pass EMI EMC Filter Metal Case For Food Service Equipment

VIP4-1A-03(B041W0717) Rev 4.0.pdf

Quick Detail:

Item	EMC EMI Filter
Model	VIP4-1A-03(B041W0717)
Original of country	China
Package Type	Screw Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	3A
Temperature	40°C
Temperature Range	-25℃~+85℃
Operating Frequency	50/60HZ
Line to Line	1760VDC
Line to Ground	2000VDC
Samples	available
MOQ	1 PCS
Price	Negotiated
Lead Time	3~20 workdays

Features:

-- high performance AC filters with much better common and differential mode attenuation performance and low frequency filtering effect.

-- Various terminal options allow you to select

-- There are a variety of parts and combinations to meet different customer's EMC tests.

-- 380VAC are also available

Applications:

1. Electrical and electronic equipment

2. Single phase servo motor

3. Datacom equipment

4. power supplies

5. Charging post / equipments

6. food service equipment

7. Energy storage systems

Specifications:
EMI EMC Low Pass Filter Metal Case For Food Service Equipment 0

EMI EMC Low Pass Filter Metal Case For Food Service Equipment 1

Our Company

1.Customized:We have a professional R&D team; our aims is we won't let customers

spend any extra money.

2.Listed company:National high-tech enterprises, brand assurance, reliable quality, and we have the relevant product certifications.

3.Rectification test: We cooperate with top scientific research laboratories to provide free

EMC rectification technical support, samples; and free conduction test.

4.Scale production:Automation technology, scale production, great price,excellent, service,

Q1: Do you offer customized product ?
A: Yes, we can develop a new mold at you need if you can provide us with the samples or drawings and specification.

Q2: Are you a factory?
A: Yes, we are an ISO9001 manufacturer, an integration of EMI filter R&D, production and sales since 2009.

Q3: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.

Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than 5000USD, we can negotiate about the payment term,like 70% deposit in advance 30% pay before delivery, etc.
Q5: How about the certificates?
A:ISO9001,CE, TUV, UL, ROHS, CQC, REACH etc.

Q6: How about the sample?
A: Free samples. You need to pay for Currier cost. Please contact us for details.

Q7: What are services available after-sale?

A: Free replacement within three-month, free maintenance within six-year, life-long maintenance.

Q8: Shipping terms

A: DHL, UPS, FedEx, TNT, EMS AIR OR BY SHIP
