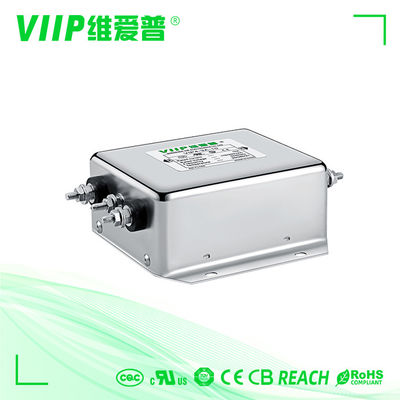

Single Phase Power Line AC EMC EMI Filter Suitable For Home Appliances

Brand Name:	VIIP WeiAiPu
Model Number:	VIP4-1A-03(B041W0555)
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Application:

Home Appliances

Certification:

CE ROHS,ISO; TUV

Line To Line:

1760VDC

Rated Current:

Temperature Range:

25 / 085 / 21

1 Pcs

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

1760VDC EMC EMI Filter

Home Appliances EMC EMI Filter

AC EMC Single Phase EMI Filter

Product Description

single phase power line AC EMC EMI Filter Suitable For HOME appliances

VIP4-1A-03(B041W0555) Rev 4.0.pdf

Quick Detail:

Item	EMC EMI Filter
Model	VIP4-1A-03(B041W0555)
Original of country	China
Package Type	Screw Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	3A
Temperature	40°C
Temperature Range	-25℃~+85℃
Operating Frequency	50/60HZ
Hipot Rating	L TO L :1450VDC
	L TO G:2000VDC
Safety compliance	UL E496526
	TUV B1016100001
	CE 14KWE051584E
Lead Time	3~20 days

Features:

-- high performance AC filters with much better common and differential mode attenuation performance and low frequency filtering effect.

-- Various terminal options allow you to select

-- There are a variety of parts and combinations to meet different customer's EMC tests.

-- 380VAC are also available

Applications:

1. Electrical and electronic equipment

2. Single phase servo motor

3. Datacom equipment

4. home appliances

5. charging pile fixtures

6. Electric vehicle

7. Energy storage systems

Specifications:
Single Phase Power Line AC EMC EMI Filter Suitable For Home Appliances 0

Our Company
We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH certification to ensure the product quality

We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.

Free EMC rectification technical support and provide free test sample

Automation technology, scale production, excellent price

Good service, fast delivery!

We have a professional R&D team
