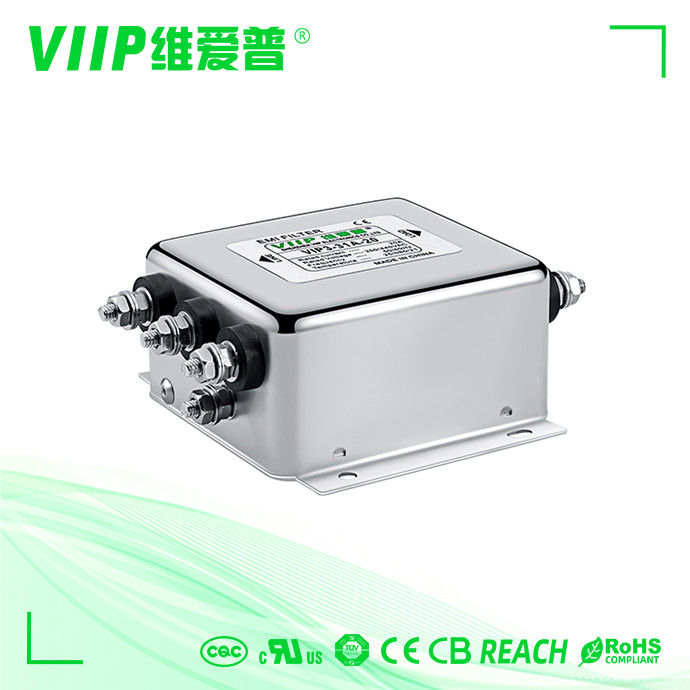

AC Line Inverter 3 Phase EMI Filter For Industry Air Conditioner Textile Equipment

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-32B-100
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Type:

3 PHASE EMI Filter

Package Type:

Sheet Or Roll Shape

Rated Voltage:

110/250VAC

Line To Ground:

2250V DC

Operating Frequency:

50/60HZ

Input Impedance:

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000pcs per week

Highlight:

30MHz 3 Phase EMI Filter

60HZ 3 Phase EMI Filter

TUV Three Phase EMI Filter

Product Description

3 Phase AC Line Inverter EMI Filter ,industry air conditioner textile equipment

VIP3-32B-80(B032S0548) Rev 4.0.pdf

3 Phase EMI Filter Power Description:

1, Rated currents from 0.5 to 2000A

2, High attenuation performance up to 30 MHz

3, Voltage rating 440VAC for worldwide acceptance

4, Approvals: CE, ROHS

5, 520V AC ,690V AC can be optional

3 Phase EMI Filter Power Specification:

Item	VIIP 3-phase 3-line EMI filter
Part Number	VIP3-32B-100
Rated voltage	250/440VAC,50/60Hz
Operating frequency	DC to 60Hz
Rated currents	0.5~2000A@40°C
Hipot Rating	L-L 2250VDC
	L-G 2700VDC
Climatic category	-25°C~+85°C(25/85/21)
Design corresponding to	UL1283, CSA C22.2 No.8,
	IEC/EN 60939,
	CQC GB 15288/GB 15287-2008
Flammability	UL 94V-0

3 Phase EMI Filter Power Specifications:

AC Line Inverter 3 Phase EMI Filter For Industry Air Conditioner Textile Equipment 0

AC Line Inverter 3 Phase EMI Filter For Industry Air Conditioner Textile Equipment 1

3 Phase EMI Filter Power Applications:

such as print machine

packing machine

textile equipment

industry air conditioner

UPS

medical equipment

Laser equipment

Our Company

We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH certification to ensure the product quality

We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.

Free EMC rectification technical support and provide free test sample

Automation technology, scale production, excellent price

Good service, fast delivery!

Cooperate with the top scientific research laboratory

We have a professional R&D team
