3 Phase EMI Filter

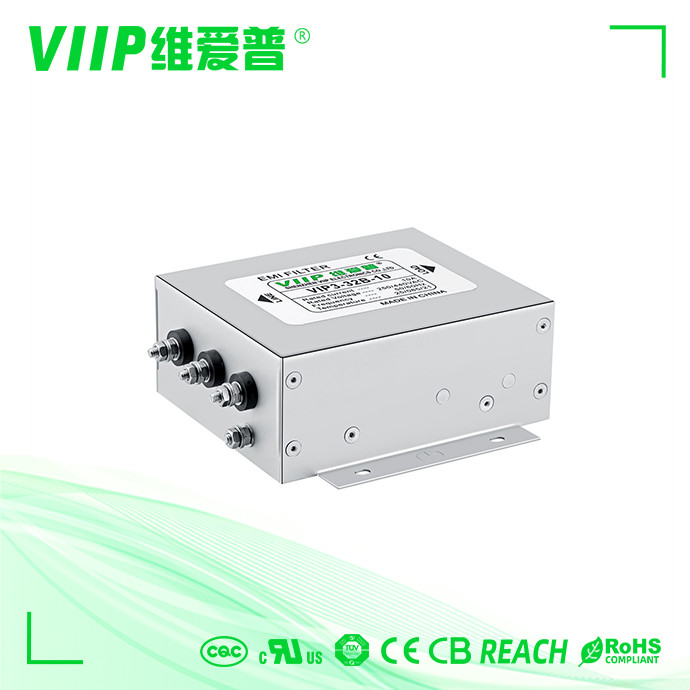

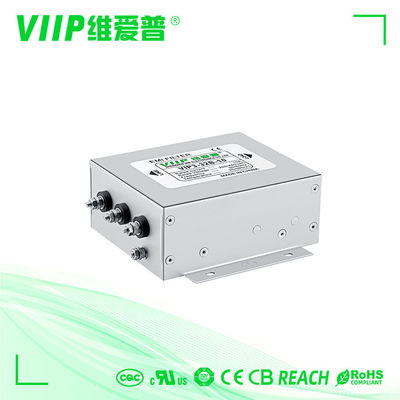

3 Wire TUV CE Approved 3 Phase EMI Filter For Charging Pile Station

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

Contact Now

3 Wire TUV CE Approved 3 Phase EMI Filter For Charging Pile Station

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-32B-50
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Transfer Function:

General Purpose

Rated Voltage:

110/250VAC

Rated Current:

Application:

Laser Equipment

Case:

Metal

Product Name:

Common Mode EMI/RFI Filter

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

3 Wire 3 Phase EMI Filter

CE Approved 3 Phase EMI Filter

110VAC Three Phase EMC Filter

Product Description

3 Phase Emi Filter 3 Wire For laser equipment ,automation equipment

VIP3-31A-40(B031T0906) Rev 4.0 Stud.pdf

Description:

suitable for three phase three line power supply

compact structure ,simple and time-saving installation,specially suitable for applications with limited space ,highly cost effective

Specification

Item	3 phase emi Filter
Model	VIP3-32B-50
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	50A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	2250VDC
Line to Ground	2700VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	1pcs
Applications	Laser equipment
leading time	5~15 weekdays

More details:

3 Wire TUV CE Approved 3 Phase EMI Filter For Charging Pile Station 0

3 Wire TUV CE Approved 3 Phase EMI Filter For Charging Pile Station 1

Applications:

Widely used all kinds of electrical unit with ⛛ connection style,such as print machine ,packing machine ,textile equipment ,industry air conditioner ,UPS ,medical equipment .etc

Our Advantages

(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.
(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.
(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.
(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements

FAQ

Q: Can you provide some samples before ordering formally?

A:Yes, samples can be provided.

Q: How can I pay?

A:T/T

Q:Do you provide customized products?

A:Yes, we can provide customized products.

Q:Do you test all products before shipping?

A:All the products will be 100% checked before the shipment.
