EMC EMI Filter

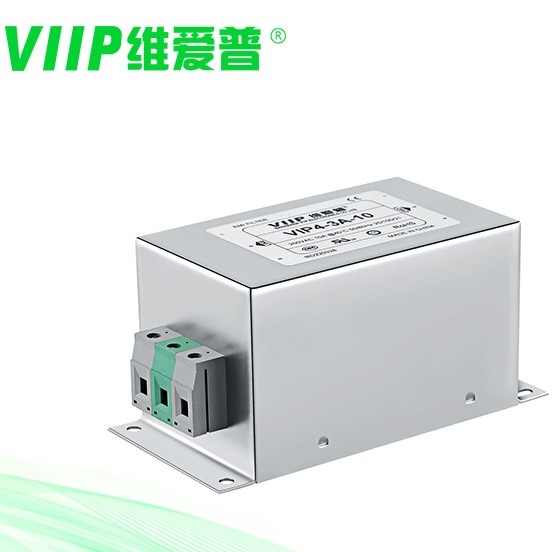

20A 50 / 60HZ Electrical Power EMC EMI Filter For Charging Fixture Equipment

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

Contact Now

20A 50 / 60HZ Electrical Power EMC EMI Filter For Charging Fixture Equipment

Brand Name:	VIIP WeiAiPu
Model Number:	VIP4-2B-10
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Type:

EMI EMC Filter

Application:

Charging Fixture

Certification:

CE ROHS,ISO; TUV

Line To Line:

1760VDC

Rated Current:

Temperature Range:

25 / 085 / 21

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

20A EMC EMI Filter

Charging Fixture EMC EMI Filter

60HZ EMI EMC Filter

Product Description

20A 50/60HZ EMC EMI Filter Electrical Power Filter Material For Equipment

EMC EMI Filter Quick Detail:

Item	EMC EMI Filter
Model	VIP4-2B-10
Original of country	China
Package Type	Screw Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	10A
Temperature	40°C
Temperature Range	-25℃~+85℃
Operating Frequency	50/60HZ
Line to Line	1760VDC
Line to Ground	2000VDC
Samples	available
MOQ	1 PCS
Price	Negotiated
Lead Time	3~20 workdays

EMC EMI Filter Features:

1.Our AC filters with exceptional performance, with greatly improved attenuation of both common and differential mode signals, as well as effective low frequency filtering.
2.We provide many terminal options, giving you the flexibility to choose the best fit for your needs.
3.We offer a wide selection of parts and combinations to meet the unique EMC testing requirements of each customer.
4.Our filters are also available in a 380VAC configuration, ensuring compatibility with a broad range of electrical systems.

EMC EMI Filter Applications:

1. Electrical and electronic equipment

2. Single phase servo motor

3. Datacom equipment

4. dental equipment

5. Charging post / equipments

6. Electric vehicle

7. Energy storage systems

EMC EMI Filter Specifications:

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals			Weight [g]
Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	screw	terminal block	wires	Weight [g]
VIP4-2A-01	1A	<0.5mA	Fig 2	Fig 1	- - -	- - -	0	95
VIP4-2A-03	3A	<0.5mA	Fig 2	Fig 1	- - -	- - -	0	95
VIP4-2A-06	6A	<0.5mA	Fig 2	Fig 1	- - -	- - -	0	95
VIP4-2A-10	10A	<1.0mA	Fig4	Fig 1	- - -	0	- - -	170
VIP4-2B-06	6A	<1.0mA	Fig4	Fig 2	M4	0	- - -	170
VIP4-2B-10	10A	<1.0mA	Fig4	Fig 2	M4	0	- - -	170
VIP4-2B-20	20A	<1.0mA	Fig4	Fig 2	M4	0	- - -	321
VIP4-2B -50	50A	<2.0mA	Fig 5	Fig 2	M6	- - -	- - -	1400
VIP4-2B-100	100A	<2.0mA	Fig 5	Fig 2	M6	- - -	- - -	2000
VIP4-2B-200	200A	<2.0mA	Fig 5	Fig 2	M8	- - -	- - -	3000
VIP4-2C-01	1A	<0.5mA	Fig 1	Fig 3	M10	- - -	0	65
VIP4-2C-03	3A	<0.5mA	Fig 2	Fig 3	M10	- - -	0	95
VIP4-2C-06	6A	<1.0mA	Fig4	Fig 3	M4	0	- - -	175
VIP4-2C-10	10A	<1.0mA	Fig4	Fig 3	M4	0	- - -	175
VIP4-2C-20	20A	<1.0mA	Fig 5	Fig 3	M4	- - -	- - -	600
VIP4-2C-50	50A	<2.0mA	Fig 5	Fig 3	M6	- - -	- - -	1600

Electrical schematic:

20A 50 / 60HZ Electrical Power EMC EMI Filter For Charging Fixture Equipment 0

Mechanical Dimension(Unit: mm)

20A 50 / 60HZ Electrical Power EMC EMI Filter For Charging Fixture Equipment 1
