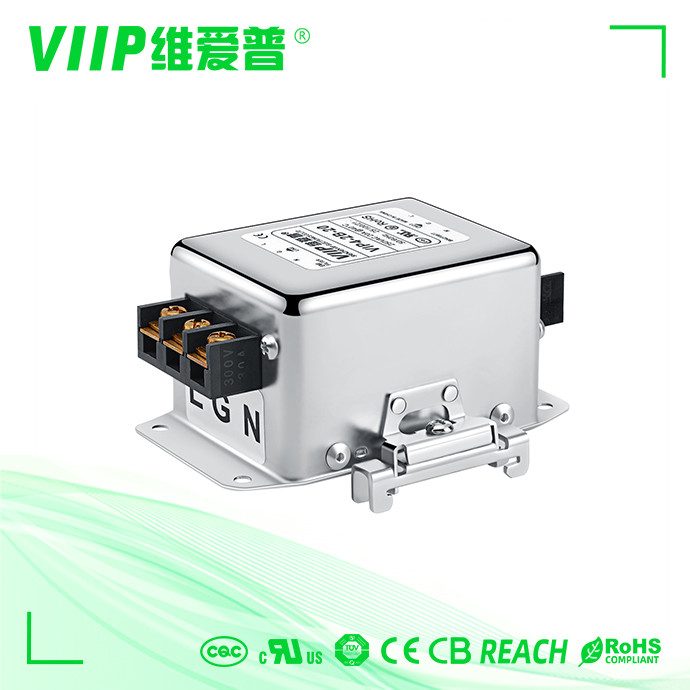

Common Mode Choke AC EMC EMI Filter Suitable For Medical Equipment

Brand Name:	VIIP WeiAiPu
Model Number:	VIP4-1B-16
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Type:

EMI EMC Filter

Application:

Medical Equipment

Certification:

CE ROHS,ISO; TUV

Line To Line:

1760VDC

Rated Current:

Temperature Range:

25 / 085 / 21

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

Common Mode Choke EMC EMI Filter

Medical Equipment EMC EMI Filter

1760VDC EMI EMC Filter

Product Description

AC EMC EMI Filter Common Mode Choke For Medical Equipment

Quick Detail:

Item	EMC EMI Filter
Model	VIP4-1B-16
Original of country	China
Package Type	Screw Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	16A
Temperature	40°C
Temperature Range	-25℃~+85℃
Operating Frequency	50/60HZ
Line to Line	1760VDC
Line to Ground	2000VDC
Samples	available
MOQ	1 PCS
Price	Negotiated
Lead Time	3~20 workdays

Features:

-- high performance AC filters with much better common and differential mode attenuation performance and low frequency filtering effect.

-- Various terminal options allow you to select

-- There are a variety of parts and combinations to meet different customer's EMC tests.

-- 380VAC are also available

Applications:

1. Electrical and electronic equipment

2. Single phase servo motor

3. Datacom equipment

4. medical equipment

5. Charging post

6. Electric vehicle

7. Energy storage systems

Specifications:
Common Mode Choke AC EMC EMI Filter Suitable For Medical Equipment 0

Our Advantages

(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.
(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.
(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.
(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements

Our Company
We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH certification to ensure the product quality

We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.

Free EMC rectification technical support and provide free test sample

Automation technology, scale production, excellent price

Good service, fast delivery!

Cooperate with the top scientific research laboratory

We have a professional R&D team
