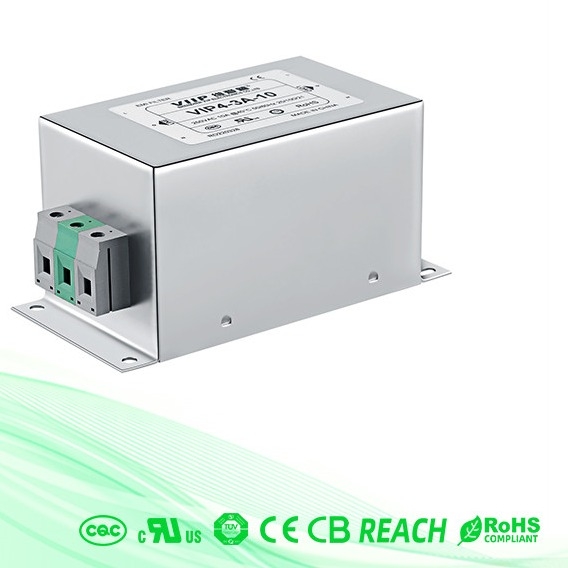

20A Screw Mount Inlet EMC Noise Filter Rated Voltage 115V / 250V

20A Screw Mount Inlet EMC Noise Filter Rated Voltage 115V / 250V
20A Screw Mount Inlet EMC Noise Filter Rated Voltage 115V / 250V
20A Screw Mount Inlet EMC Noise Filter Rated Voltage 115V / 250V 20A Screw Mount Inlet EMC Noise Filter Rated Voltage 115V / 250V

Large Image :  20A Screw Mount Inlet EMC Noise Filter Rated Voltage 115V / 250V

Product Details:
Place of Origin: China
Brand Name: VIIP
Certification: CE UL TUV ROHS REACH
Model Number: VIP4-1B-20
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs within 10-15 days

20A Screw Mount Inlet EMC Noise Filter Rated Voltage 115V / 250V

Description
Type: EMI EMC Filter Case: Metal
Application: Energy Storage Equipment Certification: CE ROHS,ISO; TUV
Line To Line: 1760VDC Rated Current: 1A-20A
High Light:

20A EMC Noise Filter

,

Screw Mount Inlet EMC Noise Filter

,

250V EMC EMI Filter

EMC EMI Single Phase RFI Filter Two Stage for servo motors

Quick Detail:

ItemEMC EMI Filter
ModelVIP4-1B-20
Original of countryChina
Package TypeScrew Mount
Nominal Center Frequency10K-30MHZ
Insertion Loss60~90dB
Input Impedance50Ω
Rated Voltage110V/250V
Rated Current20A
Temperature40°C
Temperature Range-25℃~+85℃
Operating Frequency50/60HZ
Line to Line1760VDC
Line to Ground2000VDC
Samplesavailable
MOQ1 PCS
PriceNegotiated
Lead Time3~20 workdays




Features:



-- high performance AC filters with much better common and differential mode attenuation performance and low frequency filtering effect.



-- Various terminal options allow you to select



-- There are a variety of parts and combinations to meet different customer's EMC tests.



-- 380VAC are also available





Applications:



1. Electrical and electronic equipment



2. Single phase servo motor



3. Datacom equipment



4. inverters and converters



5. Charging post



6. Electric vehicle



7. Energy storage systems

Specifications:
20A Screw Mount Inlet EMC Noise Filter Rated Voltage 115V / 250V 0
20A Screw Mount Inlet EMC Noise Filter Rated Voltage 115V / 250V 1

Our Advantages

(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.
(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.
(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.
(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements

FAQ

About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.
About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.
Q:What is your MOQ?
It depends on different items,we have low MOQ request ,because we have a big warehouse for stock orders.
Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.
About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples.
