| Brand Name: | VIIP |
| Model Number: | VIP3-31A-80 |
| MOQ: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T |

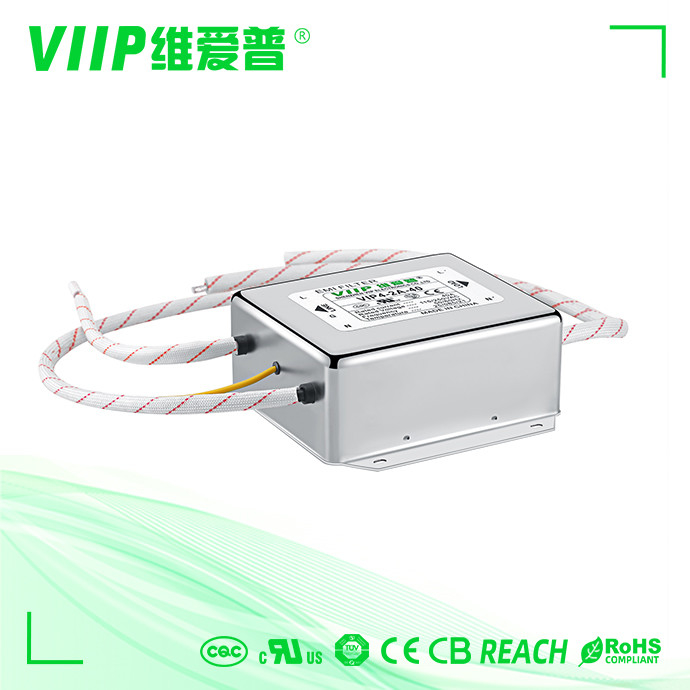

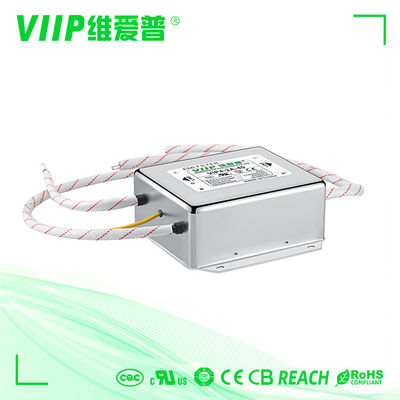

3 Phase Ac Line Emi Filter Inverter EMI Filter / Elevator Inverter Rfi Filter
VIP3-31A-80(B031S0899) Rev 4.0.pdf
Description:
1, Rated currents from 0.5 to 2000A
2, High attenuation performance up to 30 MHz
3, Voltage rating 440VAC for worldwide acceptance
4, Approvals: CE, ROHS
5, 520V AC ,690V AC can be optional
Specification:
| Item | VIIP 3-phase 3-line EMI filter |
| Part Number | VIP3-31A-100 |
| Rated voltage | 250/440VAC,50/60Hz |
| Operating frequency | DC to 60Hz |
| Rated currents | 3~200A@40°C |
| Hipot Rating | L-L 2250VDC |
| L-G 2700VDC | |
| Climatic category | -25°C~+85°C(25/85/21) |
| Design corresponding to | UL1283, CSA C22.2 No.8, |
| IEC/EN 60939, | |
| CQC GB 15288/GB 15287-2008 | |
| Flammability | UL 94V-0 |
Tabulates:
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] | Physical Dimensions | Electrical Schematics | Terminals | Weight [g] |
| ||||||
| VIP3-31A-06 | 6A | <2.0mA | Fig 1 | Fig 1 | M4 | 380 |
| VIP3-31A-10 | 10A | <2.0mA | Fig 1 | Fig 1 | M4 | 510 |
| VIP3-31A-20 | 20A | <2.0mA | Fig 1 | Fig 1 | M4 | 600 |
| VIP3-31A-30 | 30A | <2.0mA | Fig 1 | Fig 1 | M6 | 640 |
| VIP3-31A-40 | 40A | <2.0mA | Fig 1 | Fig 1 | M6 | 640 |
| VIP3-31A-50 | 50A | <3.0mA | Fig 2 | Fig 1 | M6 | 1000 |
| VIP3-31A-80 | 80A | <7.0mA | Fig 2 | Fig 1 | M8 | 3000 |
| VIP3-31A-100 | 100A | <7.0mA | Fig 2 | Fig 1 | M8 | 3000 |
| VIP3-31A-150 | 150A | <7.0mA | Fig 2 | Fig 1 | M10 | 3200 |
| VIP3-31A-200 | 200A | <7.0mA | Fig 2 | Fig 1 | M10 | 3200 |
Electrical schematic:
Mechanical Dimension(Unit: mm)
Applications:
such as print machine
packing machine
textile equipment
industry air conditioner
UPS
medical equipment
Laser equipment
Our Company
We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH certification to ensure the product quality
We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.
Free EMC rectification technical support and provide free test sample
Automation technology, scale production, excellent price
Good service, fast delivery!
Cooperate with the top scientific research laboratory
We have a professional R&D team
FAQ:
Q1:How about the certificates?
A:ISO 9001, TUV, UL, CE, CQC, CB, ENEC, ROHS, REACH etc.
Q2: Are you a factory?
A: Yes, we have been a professional manufacturer of EMI&EMC FILTER and ferrite core since 2009.
Q3: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.
|
|
