Product Details:
|
| Transfer Function: | General Purpose | Rated Voltage: | 110/250VAC |
|---|---|---|---|
| Rated Current: | 40A | Application: | Laser Equipment |
| Case: | Metal | Product Name: | Common Mode EMI/RFI Filter |
| High Light: | TUV 3 Phase EMI Filter,Laser Equipment 3 Phase EMI Filter,3 Phase EMI RFI Filter |
||

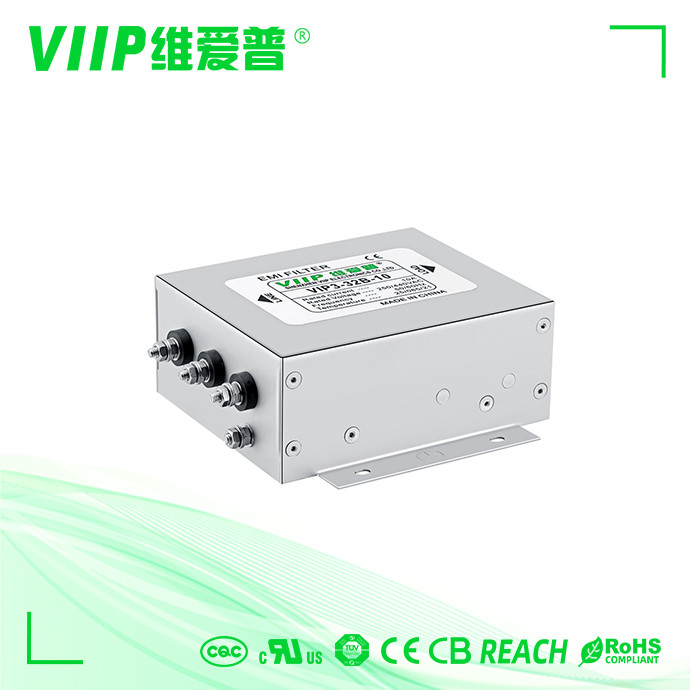

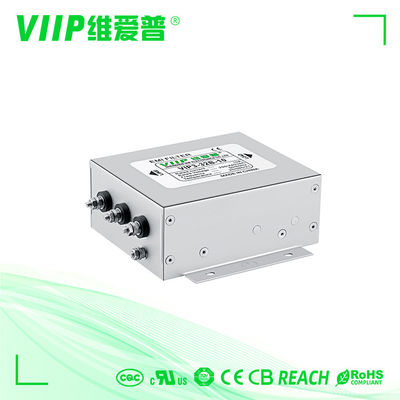

3 Phase Emi Filter 3 Wire For laser equipment ,automation equipment
VIP3-31A-40(B031T0906) Rev 4.0 Stud.pdf
Description:
suitable for three phase three line power supply
compact structure ,simple and time-saving installation,specially suitable for applications with limited space ,highly cost effective
Specification
| Item | 3 phase emi Filter |
| Model | VIP3-31A-40 |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 150K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 110V/250V |
| Rated Current | 40A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 2250VDC |
| Line to Ground | 2700VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 1pcs |
| Applications | Laser equipment |
| leading time | 5~15 weekdays |
More details:
Applications:
Widely used all kinds of electrical unit with ⛛ connection style,such as print machine ,packing machine ,textile equipment ,industry air conditioner ,UPS ,medical equipment .etc
Our Advantages
(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.
(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.
(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.
(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements
