Single Phase EMI Filter

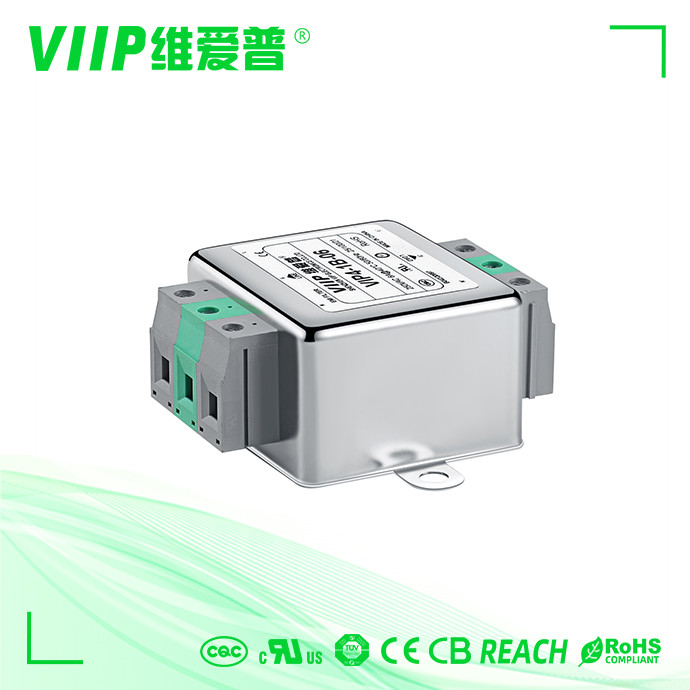

20A AC Single Phase EMI Filter For Energy Storage Systems / Charging Post

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

Contact Now

20A AC Single Phase EMI Filter For Energy Storage Systems / Charging Post

Brand Name:	VIIP WeiAiPu
Model Number:	VIP4-2B-20
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Rated Current:

Type:

EMC Filter

Transfer Function:

AC EMI Filter

Nominal Center Frequency:

10KHZ~30MHZ

Certification:

CE ROHS

Application:

Energy Storage System

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

UL Single Phase EMI Filter

Charging Post Single Phase EMI Filter

20A AC EMI Filter

Product Description

16A AC Single Phase Emi Filter For Energy Storage Systems ,Charging Post

VIP4-2B-20(10342).pdf

Quick Detail:

Place of Origin	China
Model Number	VIP4-2B-20
Input Impedance	50Ω
Insertion Loss	30-100dB
Line To Line	1760VDC
Nominal Center Frequency	10KHZ~30MHZ
Certificate	ISO9001 CE ROHS cUL TUV
Operating Frequency	50/60HZ
Temperature Range	25 / 085 / 21

Features and Benefits:

More than two levels of fitering. 10 KHz一30 MHz broadbandhigh efficiencyfiltering,especally enhance the low- frequency filteringeffect between 10 KHz150 KHz.

Designed secialy for the tansmssion of military equipment through CE102 inGJB151A/ 152A

Work frequency. rated voltage to meet different requirements, rapid customizationdesign.

The compact size can be applied to various situations.
There are a variety of parts and combinations to meet different customer's EMC tests
Customized products according to customer's requirements

Specifications:

20A AC Single Phase EMI Filter For Energy Storage Systems / Charging Post 0

FAQ

About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.

About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.
Q:What is your MOQ?
It depends on different items,we have low MOQ request ,because we have a big warehouse for stock orders.
Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.

About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples.

About Service

Q: Which payments are acceptable?
A:We accept T/T, Paypal, Western Union ect.
Q: Can I visit your company and factory in China?
A: Sure. We are happy to receive you in Shenzhen, China and show you around our workplaces.
