| Brand Name: | VIIP |
| Model Number: | VIP4-2B-03 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 33*33*18 |
| Payment Terms: | T/T, Western Union |
| Place of Origin | China |
| Model Number | VIP4-2B-03 |
| Current | 3A |
| Type | AC EMI Single phase Filter |
| Line To Line | 1760VDC |
| Line to ground | 2000VAC |
| Certificate | ISO9001 CE Rohs Reach |
| Operating Frequency | 50/60HZ |
| Temperature Range | 25 / 085 / 21 |

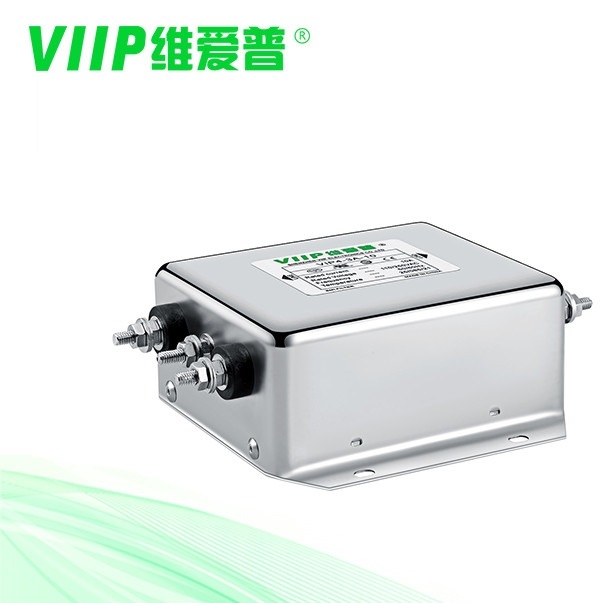

General purpose single phase AC power line filters ,easy to install ,available for small electronic equipment’s and measuring instrument
Applications:
White household
Smart home
Smart terminal
Power supply
charging post
Air purifier
Tabulates::
| Part No. | Rated Current [A] | 250VAC/50Hz @ 20C Leakage Current [mA] |
Physical Dimensions | Electrical Schematics | Terminals | Weight [g] | ||
| screw | terminal block | wires | ||||||
| VIP4-2A-01 | 1A | <0.5mA | Fig 2 | Fig 1 | - - - | - - - | 0 | 95 |
| VIP4-2A-03 | 3A | <0.5mA | Fig 2 | Fig 1 | - - - | - - - | 0 | 95 |
| VIP4-2A-06 | 6A | <0.5mA | Fig 2 | Fig 1 | - - - | - - - | 0 | 95 |
| VIP4-2A-10 | 10A | <1.0mA | Fig4 | Fig 1 | - - - | 0 | - - - | 170 |
| VIP4-2B-06 | 6A | <1.0mA | Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-2B-10 | 10A | <1.0mA | Fig4 | Fig 2 | M4 | 0 | - - - | 170 |
| VIP4-2B-20 | 20A | <1.0mA | Fig4 | Fig 2 | M4 | 0 | - - - | 321 |
| VIP4-2B -50 | 50A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 1400 |
| VIP4-2B-100 | 100A | <2.0mA | Fig 5 | Fig 2 | M6 | - - - | - - - | 2000 |
| VIP4-2B-200 | 200A | <2.0mA | Fig 5 | Fig 2 | M8 | - - - | - - - | 3000 |
| VIP4-2C-01 | 1A | <0.5mA | Fig 1 | Fig 3 | M10 | - - - | 0 | 65 |
| VIP4-2C-03 | 3A | <0.5mA | Fig 2 | Fig 3 | M10 | - - - | 0 | 95 |
| VIP4-2C-06 | 6A | <1.0mA | Fig4 | Fig 3 | M4 | 0 | - - - | 175 |
| VIP4-2C-10 | 10A | <1.0mA | Fig4 | Fig 3 | M4 | 0 | - - - | 175 |
| VIP4-2C-20 | 20A | <1.0mA | Fig 5 | Fig 3 | M4 | - - - | - - - | 600 |
| VIP4-2C-50 | 50A | <2.0mA | Fig 5 | Fig 3 | M6 | - - - | - - - | 1600 |
Electrical schematic:
Mechanical Dimension(Unit: mm)
Our Advantages
(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.
(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.
(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.
(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements
FAQ:
Q: Can you provide some samples before ordering formally?
A:Yes, samples can be provided.
Q: How can I pay?
A:T/T
Q:Do you provide customized products?
A:Yes, we can provide customized products.
Q:Do you test all products before shipping?
A:All the products will be 100% checked before the shipment.s.
|
|
