Single Phase EMI Filter

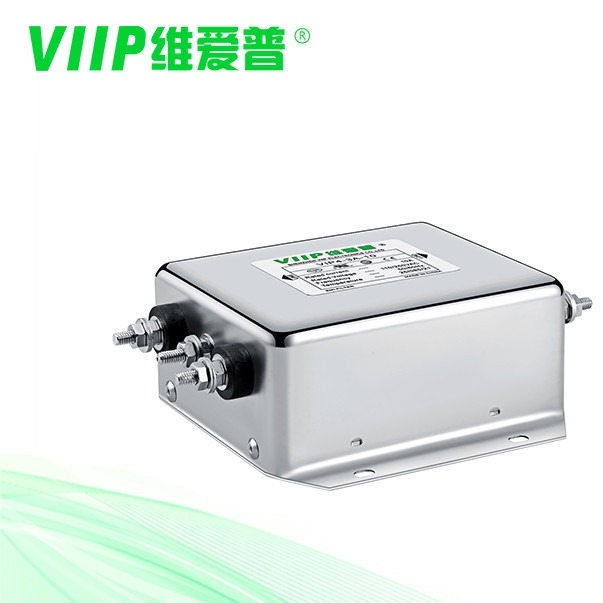

Single Phase EMI Filter with 500VDC Input Impedance and 150 kHz to 30 GHz Frequency Range for Air Purifier

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

19925448748

Contact Now

Single Phase EMI Filter with 500VDC Input Impedance and 150 kHz to 30 GHz Frequency Range for Air Purifier

Brand Name:	VIIP WeiAiPu
Model Number:	VIP4-2B-03
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Type:

AC SINGLE PHASE FILTER

Rated Voltage:

110/250VAC

Certification:

CE ROHS,CE CQC,ISO; TUV

Application:

Air Purifier

Package Type:

Surface Mount

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

SMPS Single Phase RFI Filter

10A Single Phase RFI Filter

1A AC RFI Filter

Product Description

SMPS AC Single Phase RFI Filter Rated Current 1A-10A For Air Purifier

Product Overview

General purpose single phase AC power line filters, easy to install, suitable for small electronic equipment and measuring instruments.

Specifications

Parameter	Value
Place of Origin	China
Model Number	VIP4-2B-03
Current	3A
Type	AC EMI Single phase Filter
Line To Line	1760VDC
Line to ground	2000VAC
Certificate	ISO9001 CE Rohs Reach
Operating Frequency	50/60HZ
Temperature Range	25 / 085 / 21

Applications

White household
Smart home
Smart terminal
Power supply
Charging post
Air purifier

Technical Specifications

Part No.	Rated Current [A]	Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals	Weight [g]
VIP4-2A-01	1A	<0.5mA	Fig 2	Fig 1	- - -	95
VIP4-2A-03	3A	<0.5mA	Fig 2	Fig 1	- - -	95
VIP4-2A-06	6A	<0.5mA	Fig 2	Fig 1	- - -	95
VIP4-2A-10	10A	<1.0mA	Fig4	Fig 1	- - -	170
VIP4-2B-06	6A	<1.0mA	Fig4	Fig 2	M4	170
VIP4-2B-10	10A	<1.0mA	Fig4	Fig 2	M4	170
VIP4-2B-20	20A	<1.0mA	Fig4	Fig 2	M4	321
VIP4-2B-50	50A	<2.0mA	Fig 5	Fig 2	M6	1400
VIP4-2B-100	100A	<2.0mA	Fig 5	Fig 2	M6	2000
VIP4-2B-200	200A	<2.0mA	Fig 5	Fig 2	M8	3000

Electrical Schematic
