Single Phase EMI Filter
>

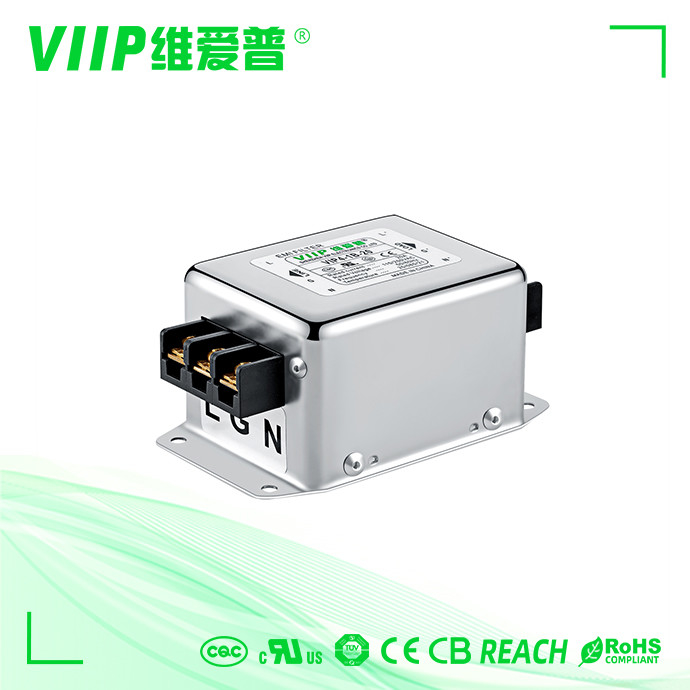

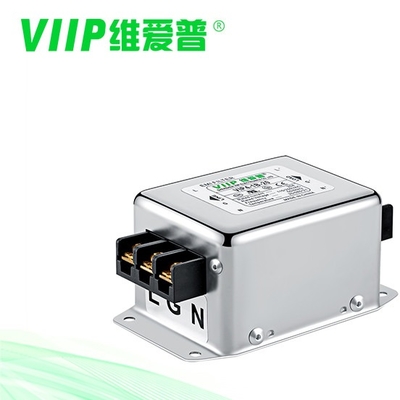

10KHZ-30MHZ Low Pass Military EMI Filters Common Mode Single Phase

10KHZ-30MHZ Low Pass Military EMI Filters Common Mode Single Phase

Brand Name: VIIP WeiAiPu
Model Number: VIP4-1B-06
MOQ: 1 PCS
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
CE TUV UL CQC
Rated Current:
6A
Type:
EMC Filter
Transfer Function:
AC EMI Filter
Nominal Center Frequency:
10KHZ~30MHZ
Certification:
CE ROHS
Application:
Military Equipment
Input Impedance:
500VDC/100MOHM MIN
Frequency Range:
150 KHz To 30 GHz
Storage Temperature:
-40℃~+85℃
Item:
EMI Filter
Operating Frequency:
50/60HZ
Nominal Center Frequency:
50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)
Dimensions:
Varies Depending On Model
Port:
Shenzhen
Termination Style:
Solder Pins
Rated Current:
Different
Weight:
290g-1000g
Insulation Resistance:
≥100MΩ
Rohs Compliant:
Yes
Humidity:
≤95%RH
Supply Ability:
2000 pcs within 10-15 days
Highlight:

10KHZ Military EMI Filters

,

Single Phase Military EMI Filters

,

30MHZ Single Phase EMI Filter

Product Description

10KHZ-30MHZ Low Pass Military EMI Filters common-mode single phase



VIP4-2B-03(B042W0910) Rev 4.0.pdf

Quick Detail:



Place of Origin China
Model Number VIP4-1B-06
Input Impedance 50Ω
Insertion Loss 30-100dB
Line To Line 1760VDC
Nominal Center Frequency 10KHZ~30MHZ
Certificate ISO9001 CE ROHS cUL TUV
Operating Frequency 50/60HZ
Temperature Range 25 / 085 / 21



Features and Benefits:

More than two levels of fitering. 10 KHz30 MHz broadbandhigh efficiencyfiltering,especally enhance the low- frequency filteringeffect between 10 KHz150 KHz.



Designed secialy for the tansmssion of military equipment through CE102 inGJB151A/ 152A





Work frequency. rated voltage to meet different requirements, rapid customizationdesign.



  • The compact size can be applied to various situations.
  • There are a variety of parts and combinations to meet different customer's EMC tests
  • Customized products according to customer's requirements





Specifications:



10KHZ-30MHZ Low Pass Military EMI Filters Common Mode Single Phase 0





FAQ:
Q:Do you offer a customized product?
A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.

Q: Are you an ISO9001 manufacturer?
A: Yes, we are a professional manufacturer of EMI filter designing and manufacturing since 2009.

Q: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us


Q: How about the payment terms?
A: we also accept T/T Western Union, Paypal, etc.

Q: How about the certificates?
A: ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.
