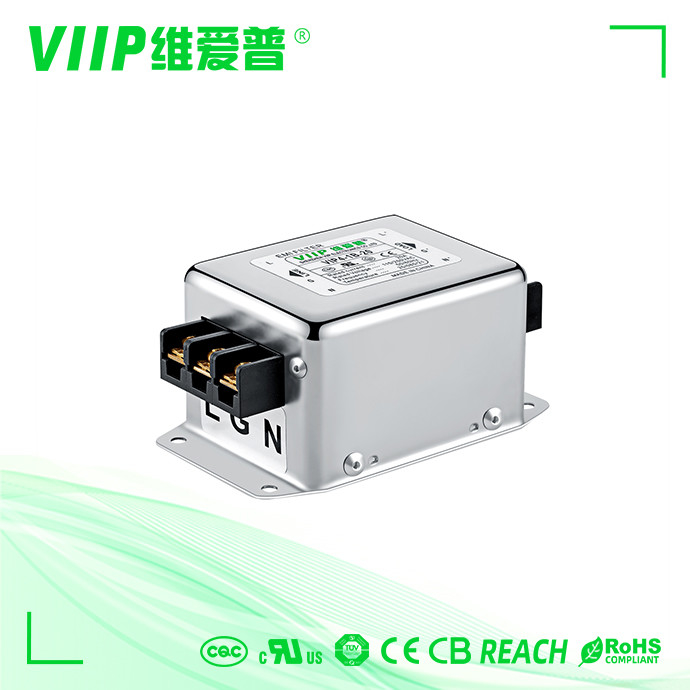

EMC EMI Single Phase RFI Filter Two Stage For Data Equipment

Brand Name:	VIIP WeiAiPu
Model Number:	VIP4-2B-20
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Type:

EMI EMC Filter

Rated Current:

Case:

Metal

Application:

Servo Motors

Certification:

CE ROHS,ISO; TUV

Line To Line:

1760VDC

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

REACH Single Phase RFI Filter

EMC EMI Single Phase RFI Filter

Data Equipment EMC EMI Filter

Product Description

EMC EMI Single Phase RFI Filter Two Stage For Data Equipment Ac Filters

Quick Detail:

Item	EMC EMI Filter
Model	VIP4-2B-20
Original of country	China
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	20A
Temperature	40°C
Temperature Range	-25℃~+85℃
Operating Frequency	50/60HZ
Line to Line	1760VDC
Line to Ground	2000VDC
Samples	available
MOQ	1 PCS
Price	Negotiated
Lead Time	3~20 workdays

Features:

-- High performance AC filters with exceptional common and differential mode filtering effect for inerference from 10khz to 30Mhz

-- Various terminal options allow you to select

-- There are a variety of parts and combinations to meet different customer's EMC tests.

-- 380VAC are also available

Applications:

1. Electrical and electronic equipment

2. Single phase servo motor

3. Datacom equipment

4. inverters and converters

5. Charging post

6. Electric vehicle

7. VFD

Specifications:
EMC EMI Single Phase RFI Filter Two Stage For Data Equipment 0

Our Company
We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH certification to ensure the product quality

We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.

Free EMC rectification technical support and provide free test sample

Automation technology, scale production, excellent price

Good service, fast delivery!

Cooperate with the top scientific research laboratory

We have a professional R&D team

FAQ:
Q1:How about the certificates?
A:ISO 9001, TUV, UL, CE, CQC, CB, ENEC, ROHS, REACH etc.

Q2: Are you a factory?
A: Yes, we have been a professional manufacturer of EMI&EMC FILTER and ferrite core since 2009.

Q3: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.
