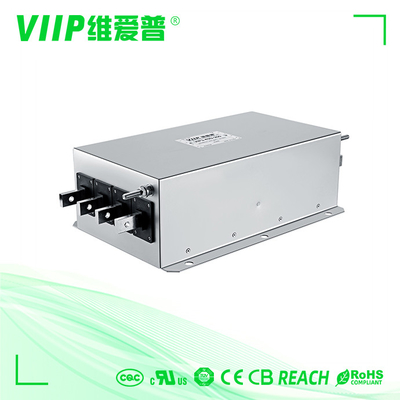

Name: Three Phase 4 Wire AC Emi Filter 440V For Mechanical Equipment
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP3-41A-40
Price: 14.05 USD
Availability: InStock

Brand Name:	VIIP
Model Number:	VIP3-41A-40
MOQ:	100 PCS
Price:	usd
Packaging Details:	333318
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL ROHS REACH

Transfer Function:

AC 3 Phase Power Filter

Insertion Loss:

At 50OHM System

Input Impedance:

500VDC/100MOHM MIN

Rated Voltage:

110/250VAC

Application:

Electronic Equipments

Temperature Range:

25 / 085 / 21

Supply Ability:

2000 pcs within 10-15 days

Highlight:

4 Wire AC Emi Filter 440V

Emi Filter 440V For Mechanical Equipment

Mechanical Equipment 4 Wire AC Emi Filter

Product Description

3 Phase 4 Wire Ac Emi Filter For Mechanical Equipment Electric Filter

Quick Detail:

Model Number:
Type:EMI Filter
Place of Origin:Shenzhen , China
Brand Name: VIIP
Transfer Function:Low Pass
Nominal Center Frequency:10KHz-30MHz
Input Impedance:50Ω
Insertion Loss:20~100dB
Stopband Attenuation:20~100dB
Item:Low Pass EMI Filter
Rated Voltage:440V
Rated Current:0.5A-800A
Environmental Temp:50°C
Temperature Range:25 / 085 / 21
Operating Frequency:50/60HZ
Line to Line:1450VDC
Line to Ground:2250VDC or 2000VAC
Certificate:cUL TUV ISO9001 CE ROHS

Description:

suitable for three phase three line power supply

compact structure ,simple and time-saving installation,specially suitable for applications with limited space ,highly cost effective

Specifications:

Three Phase 4 Wire AC Emi Filter 440V For Mechanical Equipment 0

Three Phase 4 Wire AC Emi Filter 440V For Mechanical Equipment 1

Applications:

Widely used all kinds of electrical unit with ⛛ connection style,such as print machine ,packing machine ,textile equipment ,industry air conditioner ,UPS ,medical equipment .etc

Our Company

We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH certification to ensure the product quality

We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.

Free EMC rectification technical support and provide free test sample

Automation technology, scale production, excellent price

Good service, fast delivery!

Cooperate with the top scientific research laboratory

We have a professional R&D team
