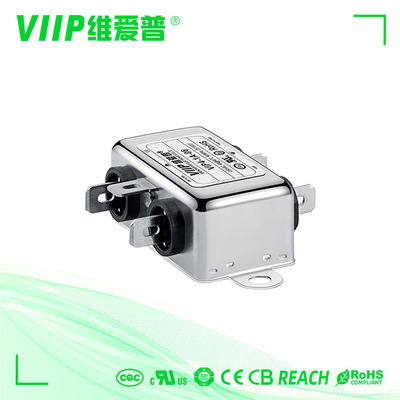

Name: Metal Case 60-90dB AC EMI Filter 10A Single Phase Rfi Filter
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP4-2B-10
Price: 14.05 USD
Availability: InStock

Brand Name:	VIIP
Model Number:	VIP4-2B-10
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL TUV ROHS REACH

Type:

AC Single Filter

Transfer Function:

Low Pass

CASE:

METAL

Application:

Medical Equipment

Temperature Range:

25 / 085 / 21

MOQ:

1PCS

Supply Ability:

2000 pcs within 10-15 days

Highlight:

90dB AC EMI Filter 10A

Metal Case 10A Single Phase Rfi Filter

90dB AC Single Phase Rfi Filter

Product Description

Industrial AC EMI Filter Various Terminal Options 10AN Single Phase

Quick Detail

Item number	VIP4-2B-10
Package Type	Surface Mount
Nominal Center Frequency	10KHZ-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	10A
Original of Country	China
Temperature	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1760VDC
Line to Ground	2200VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	5pcs
Packing	neutral packing
Lead Time	5~15 working days

Features:

-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device

-- Various terminal options allow you to select

-- There are a variety of parts and combinations to meet different customer's EMC tests.

-- Customized products according to customer's requirements.

Specifications:

Our service

Sample

Sample Fee: Negotiate

Sample Time: 3~5 working days

Payment

---Payment terms: Western Union, T/T,Paypal

---Please remember to leave the correct contact information for delivery.
