3 Phase EMI Filter

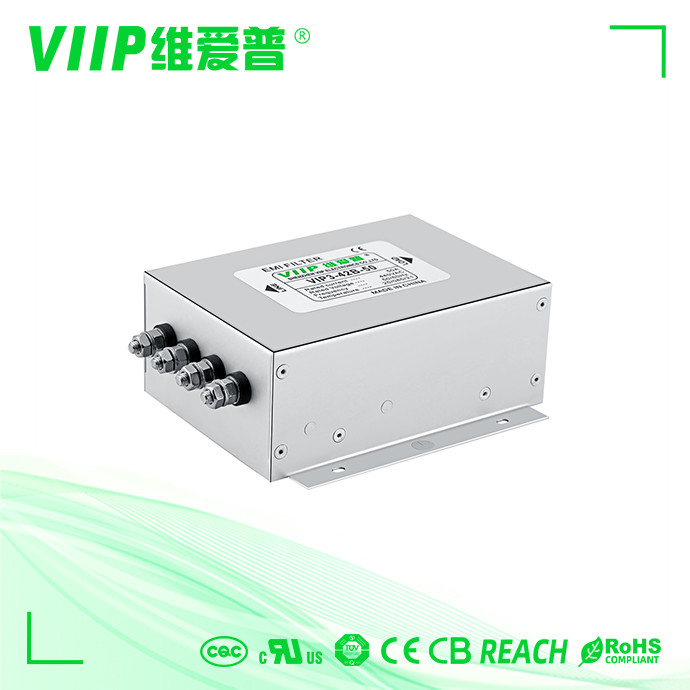

Air Conditioner Power Line Filters Three Phase 6A Mains Suppression Filter

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

Contact Now

Air Conditioner Power Line Filters Three Phase 6A Mains Suppression Filter

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-31A-06
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Transfer Function:

AC 3 Phase Power Filter

Nominal Center Frequency:

50/60Hz

Rated Voltage:

110/250VAC

Rated Current:

1 PCS

Temperature Range:

25 / 085 / 21

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Operating Frequency:

50/60HZ

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

Power Line Filters Three Phase 6A

Three Phase 6A Mains Suppression Filter

Air Conditioner Mains Suppression Filter

Product Description

Power Line 3 Phase 3 Wire Mains Electric Filter Industry Air Conditioner

Description:

suitable for three phase three line power supply

compact structure ,simple and time-saving installation,specially suitable for applications with limited space ,highly cost effective

Specification:

Item	3 Phase EMI Filter
Model	3 Phase EMI Filter - VIP3 Series
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal working Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	380V/440V
Current	6A
Working Temperature	40°C
Temperature	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	2250VDC
Line to Ground	2700VDC
Maximum Leakage Current	110VAC/60HZ 1.4mA
MOQ	5pcs
Port	Shenzhen
Lead Time	3~15

Specifications:

Air Conditioner Power Line Filters Three Phase 6A Mains Suppression Filter 0

Air Conditioner Power Line Filters Three Phase 6A Mains Suppression Filter 1

Applications:

Widely used all kinds of electrical unit with ⛛ connection style,such as print machine ,packing machine ,textile equipment ,industry air conditioner ,UPS ,medical equipment .etc

FAQ:

Q1:How about the certificates?

A:ISO 9001, TUV, UL, CE, CQC, CB, ENEC, ROHS, REACH etc.

Q2: Are you a factory?
A: Yes, we have been a professional manufacturer of EMI&EMC FILTER and ferrite core since 2009.

Q3: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.

Q4: How about the payment terms?
A: We usually require T/T in advance. we also accept other payment methods.

Q5: Do you offer customized product ?
A: Yes, we can develop a new mold as your requirement if you can provide us with the samples or drawings and specifications.

Q6: How about the samples?
A: Free samples. You need to pay for freight cost. Please contact us for details.

We Can Provide EMC technical rectification and always can custom product as your requirement to pass the EMC test. Let's talk in details.
