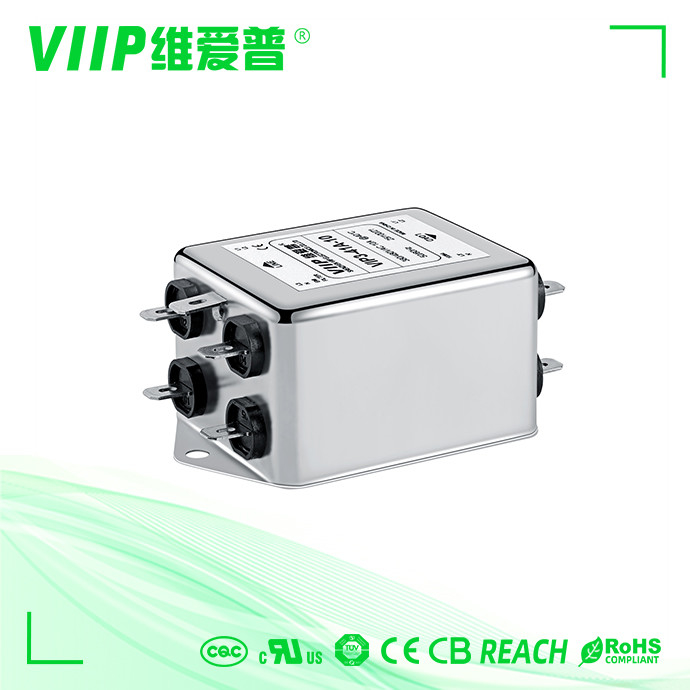

Name: UL 94V-0 440VAC Power Line EMI Filter 10A CE ROHS REACH
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP3-31A-30
Price: 25.00 USD
Availability: InStock

Brand Name:	VIIP WeiAiPu
Model Number:	VIP3-31A-30
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Rated Voltage:

110/250VAC

Rated Current:

30A

Nominal Center Frequency:

50/60Hz

MOQ:

1 PCS

Type:

EMC Filter

Operating Frequency:

50/60HZ

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Yes

Humidity:

≤95%RH

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

440VAC Power Line EMI Filter 10A

UL 94V-0 Power Line EMI Filter

EMI Filter 10A CE ROHS

Product Description

UL 94V-0 440VAC 30A 3 Phase EMI Filter With CE ROHS Power Emi Filter

Description:

1, Rated currents from 0.5 to 2000A

2, High attenuation performance up to 30 MHz

3, Voltage rating 440VAC for worldwide acceptance

4, Approvals: CE, ROHS

Specification:

Item	3 Phase EMI Filter
Model	3 Phase EMI Filter - VIP3 Series
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal working Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	380V/440V
Current	30A
Working Temperature	40°C
Temperature	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	2250VDC
Line to Ground	2700VDC
	110VAC/60HZ 1.4mA
MOQ	5pcs
Port	Shenzhen
Leading Time	3~15

Physical Dimensions

UL 94V-0 440VAC Power Line EMI Filter 10A CE ROHS REACH 0

Electrical Schematic

UL 94V-0 440VAC Power Line EMI Filter 10A CE ROHS REACH 1

Insertion loss table(In 50ohm system according to IEC/CISPR No.17)

UL 94V-0 440VAC Power Line EMI Filter 10A CE ROHS REACH 2

Specifications:

UL 94V-0 440VAC Power Line EMI Filter 10A CE ROHS REACH 3

UL 94V-0 440VAC Power Line EMI Filter 10A CE ROHS REACH 4

Applications:

Widely used all kinds of electrical unit with ⛛ connection style,such as print machine ,packing machine ,textile equipment ,industry air conditioner ,UPS ,medical equipment .etc

Our Company

We have UL; cUL; TUV; CQC; CE; ROHS; ISO9001:2015; REACH certification to ensure the product quality

We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.

Free EMC rectification technical support and provide free test sample

We have a professional R&D team
