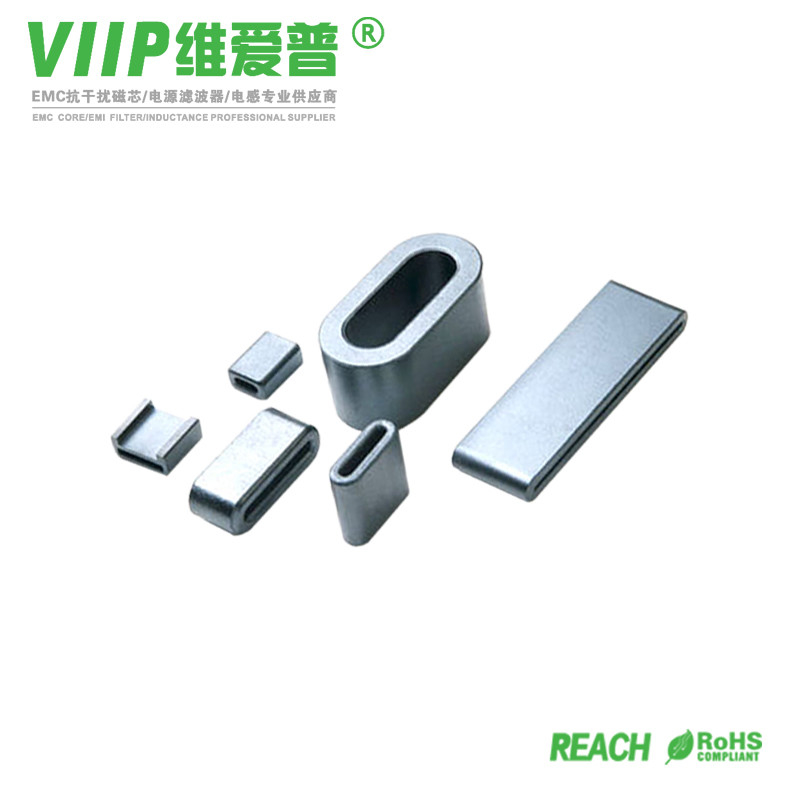

Soft Ferrite Core EMI Ferrite Core Toroid Iron Powder Core
Quick Detail:
Dimensions
| A | 5 ± 0.4mm |
| B | 3 土 0.4mm |
| c | 3.4 ± 0.4mm |
| D | 4 ± 0.4mm |
| E | 1.4 土 0.4mm |
Description:
This is a ferrite ring, not a magnet. It has no magnetism.
Iron powder core is generally stored near signals of place.
It has the characteristics of isolating eddy current, low permeability and restraining interference.
ELECTRIC CHARACTERISTICS:
|
TEST ITEM ＋ |
ELECTRIC CHARACTERISTICS |
DIMENSION (MM) |
||||||||||
| Q | L | Zl | Z2 | Z3 | Z4 | A | B | c | D | E | F | |
| 35 | 70 | 5 | 3 | 3.4 | 4 | 1. 4 | ||||||
| 0. 4 | 0.4 | 0.4 | 0.4 | 0.4 | ||||||||
|
- |
0. 4 | 0.4 | 0.4 | 0.4 | 0.4 | |||||||
| 1 | 40. 6 | 89.6 | 5. 25 | 3. 13 | 3.67 | 4. 20 | 1.45 | |||||
| 2 | 40.8 | 89.0 | 5. 24 | 3. 17 | 3.63 | 4. 15 | 1.43 | |||||
| 3 | 41. 4 | 90.8 | 5. 20 | 3. 15 | 3.56 | 4. 18 | 1.42 | |||||
| 4 | 41. 2 | 90.4 | 5. 25 | 3. 11 | 3.59 | 4. 17 | 1.44 | |||||
| 5 | 42. 0 | 89.2 | 5. 22 | 3. 15 | 3.66 | 4. 24 | 1.45 | |||||
| 6 | 41. 6 | 89.8 | 5. 23 | 3. 14 | 3.63 | 4. 21 | 1.46 | |||||
| 7 | 40. 2 | 90.6 | 5. 21 | 3. 13 | 3.65 | 4. 23 | 1.44 | |||||
| 8 | 42. 4 | 90.2 | 5. 25 | 3. 16 | 3.68 | 4. 20 | 1.45 | |||||
| 9 | 41. B | 90.0 | 5. 20 | 3. 11 | 3.66 | 4. 25 | 1.48 | |||||
| 10 | 40. 6 | 90.4 | 5. 19 | 3. 12 | 3.60 | 4. 22 | 1. 50 | |||||
| x | 42. 3 | 90. 00 | 5. 22 | 3. 13 | 3.63 | 4. 20 | 1.45 | |||||
| Y I N | y | y | y | y | y | y | y | |||||
Specifications:
Applications:
Used widely in power transformers, current transducers, instrument transformers, inductors, chokes, ballasts, voltage stabilizers and regulators, welding transformers, broad band transformers, filters, etc.
Our Company
1. Customized:We have a professional R&D team; our aims is we won't let customers
spend any extra money.
2. Listed company:National high-tech enterprises, brand assurance, reliable quality, and we have the relevant product certifications.
3. Rectification test: We cooperate with top scientific research laboratories to provide free
EMC rectification technical support, samples; and free conduction test.
|
|
