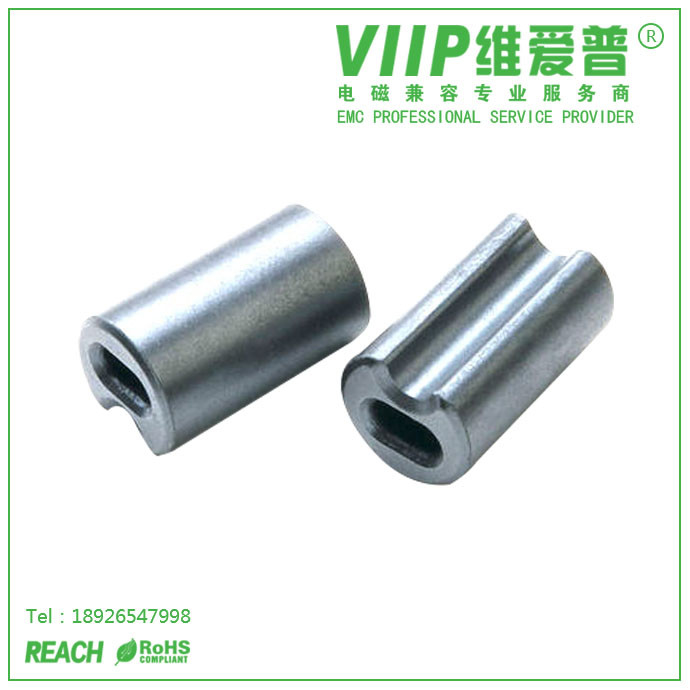

Cylindrical Emicore Magnet EMI Ferrite Core RHS TYPE Low Permeability

Cylindrical Emicore Magnet EMI Ferrite Core RHS TYPE Low Permeability
Cylindrical Emicore Magnet EMI Ferrite Core RHS TYPE Low Permeability
Cylindrical Emicore Magnet EMI Ferrite Core RHS TYPE Low Permeability Cylindrical Emicore Magnet EMI Ferrite Core RHS TYPE Low Permeability

Large Image :  Cylindrical Emicore Magnet EMI Ferrite Core RHS TYPE Low Permeability

Product Details:
Place of Origin: china
Brand Name: VIIP
Model Number: Rhs
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 5k For one week

Cylindrical Emicore Magnet EMI Ferrite Core RHS TYPE Low Permeability

Description
Certification: ROHS;REACH;ISO9001 Material: Nizn
Product Name: Ferrite Core Application: For Cables
Model: RHS TYPE Composite: Iron Powder
High Light:

EMI Ferrite Core RHS TYPE

,

Cylindrical Emicore Magnet

,

RHS TYPE Emicore Magnet

Soft Ferrite Core EMI Ferrite Core Toroid Inside Electronics Component



Quick Detail:



  • Place of Origin:Guangdong, China
  • Brand Name:VIIP
  • Model Number:Rhs type
  • Type:Soft
  • Composite:Ferrite Magnet
  • Shape:Cylindrical
  • Application:Industrial Magnet
  • Tolerance:±1%
  • Delivery Time:within 7 days

Dimensions

Cylindrical Emicore Magnet EMI Ferrite Core RHS TYPE Low Permeability 0

A 11.7 ± 0.5mm
B 6 土 0.4mm
c 19.75 ± 0.5 mm
D 3 ± 0.4mm

Description:



This is a ferrite ring, not a magnet. It has no magnetism.
Iron powder core is generally stored near signals of place.
It has the characteristics of isolating eddy current, low permeability and restraining interference.




TEST ITEM

ELECTRIC CHARACTERISTICS



DIMENSIONS (mm)
Q L Zl Z2 Z3 Z4 A B c D E F G H
    80 135     11. 7 6 19. 75 3
        0. 5 0. 4 0. 5 0.4
-         0. 5 0. 4 0. 5 0.4
1     103. 6 177. 6     11. 62 6. 19 19. 66 3. 12
2     102.8 176. 8     11. 64 6. 20 19. 72 3. 15
3     103. 2 178. 4     11. 70 6. 25 19. 74 3. 19
4     102.4 178. 2     11. 66 6. 21 19. 69 3. 18
5     103. 0 177. 0     11. 72 6. 25 19. 66 3. 12
6     102. 2 176. 2     11. 73 6. 23 19. 68 3. 15
7     102. 6 177. 6     11. 61 6. 20 19. 75 3. 17
8     102.4 178. 3     11. 74 6. 19 19. 62 3. 16
9     103. 0 177. 4     11. 72 6. 25 19. 70 3.10
10     102. 6 176. 8     11. 65 6. 23 19. 71 3. 11
x     102. 78 177.43     11. 67 6. 22 19. 69 3. 14
Y I N     y y     y y y y



Specifications:



Cylindrical Emicore Magnet EMI Ferrite Core RHS TYPE Low Permeability 1





Applications:

Used widely in power transformers, current transducers, instrument transformers, inductors, chokes, ballasts, voltage stabilizers and regulators, welding transformers, broad band transformers, filters, etc.



Cylindrical Emicore Magnet EMI Ferrite Core RHS TYPE Low Permeability 2





Cylindrical Emicore Magnet EMI Ferrite Core RHS TYPE Low Permeability 3

FAQ

About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.

About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.
Q:What is your MOQ?
It depends on different items,we have low MOQ request ,because we have a big warehouse for stock orders.
Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.

About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples.
