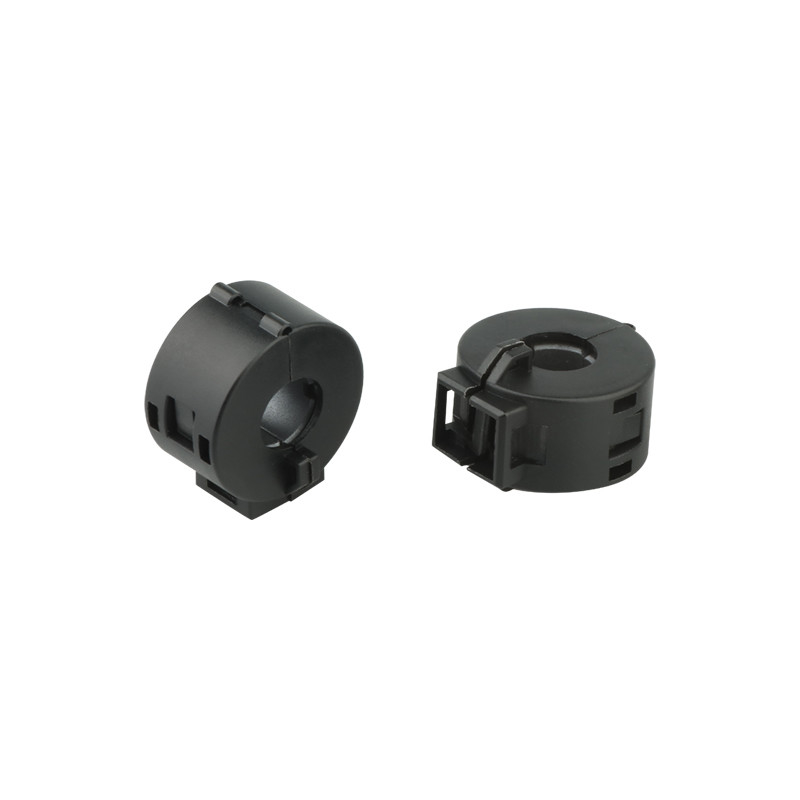

Black F9 Clip On Ferrite Ring Core Cable Clamps

Black F9 Clip On Ferrite Ring Core Cable Clamps
Black F9 Clip On Ferrite Ring Core Cable Clamps

Large Image :  Black F9 Clip On Ferrite Ring Core Cable Clamps

Product Details:
Place of Origin: china
Brand Name: VIIP
Certification: Rohs Reach
Model Number: V18011B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 5k For one week

Black F9 Clip On Ferrite Ring Core Cable Clamps

Description
Product Namee: Snap On Ferrite Core Type: Clap-on
Material: F9 Color: Black
Model: V18011B Samples: On Stock
High Light:

F9 Clip On Ferrite Ring Cores

,

Black F9 Ferrite Ring Core Clamps

,

F9 Clip On ferrite cable clamps

Clip-On Ferrite Ring Core RFI EMI Noise Suppressor Cable ferrite ring core

Quick Detail:



  • Place of Origin:Guangdong, China
  • Brand Name:VIIP
  • Model Number:V18011B
  • Type:Soft
  • Composite:Ferrite Magnet
  • Shape:Cylindrical
  • Application:Industrial Magnet
  • Tolerance:±1%
  • Delivery Time:within 7 days
  • Item name:Clip-on Ferrite Magnetic Ring Core RFI EMI Noise Suppressor Cable Clip
  • Material:F9
  • Impedance:155 ohm min at 100MHz



RFI EMI Noise Suppressor Cable Clip:EMI RFI Noise Filter Clip;Ferrite core with plastic cover; Helps to reduce EMI on AC power lines.



Ferrite Cores:Reduce electro-magnetic interference and improve signal integrity; Easy to install, just clip it on and you will get clearer signal and faster data transmission.



Specifications:

No. Specifications Fig Dimensions:mm Impedance(Ω)min
ΦA B ΦC D E 25MHz 100MHz
1 V18001A 1 13±1 11.8±1 3.5±0.8 25.2±1 2.5±1 135 260
2 V18001 1 13±1 12±1 5±0.8 25.2±1 2.5±1 90 190
3 V18002 1 16.5±1 14±1 7±0.8 30±1 2.5±1 80 195
4 V18002C 5 20.7±1 39.4±1 7.2±0.5 / / 120 220
5 V18003 1 19.5±1 18±1 9±0.8 35±1 5.5±1 100 240
6 V18004 1 23.5±1 22.2±1 13.5±0.8 36±1 10.5±1 90 190
7 V18005 2 17.5±1 19.5±1 6.5±0.8 32.5±1 / 135 330
8 V18006 2 22±1 23.5±1 10±0.8 33±1 / 90 250
9 V18007 2 29±1 30±1 13±0.8 32.2±1 / 160 280
10 V18008 3 19.5±1 23±1 8±0.8 17±1 23±1 70 140
11 V18009 3 19.5±1 23±1 8±0.8 19.5±1 26±1 80 160
12 V18010 4 15±1 14±1 7±1 18±1 22±1 45 125
13 V18011 4 19.5±1 / 9±1 32±1 36±1 105 185
14 V18011A 4 20.5±1 20.5±1 11±0.8 32±1 36±1 80 155
15 V18011B 3 28±1 31±1 11.4±0.8 17.5±1 23.5±1 75 135
16 V18012 4 30±1 / 13±0.8 34±1 39±1 125 230
17 V18013 5 16.5±1 29.5±1 5±0.8 / / 80 165
18 V18017 4 40.5±1 / 17±1 49.8±1 / 200 350
19 V18018 3 29±1 33±1 15±0.8 15.5±1 21.5±1 55 110
20 V18019 1 19.5±1 18±1 8±0.8 35±1 5.5±1 120 175
21 V18020 3 24±1 27±1 10±0.8 13.5±1 19±1 60 110
22 V18021 1 11.7±1 10.8±1 4±0.8 21.4±1 2.6±1 90 160
23 V18031 2 15±1 14±1 6±1 23±1 / 80 160
24 V18032 1 19.5±1 18.0±1 5.0±1 35±0.8 / 190 320
25 V18033 4 19.5±1 / 8±0.8 32±1 36±1 120 175

Black F9 Clip On Ferrite Ring Core Cable Clamps 0



Applications:

✔ 3.5mm / 0.14in (inner diameter): suitable for 0.06 - 0.14in / 1.5 - 3.5mm cables
Application: Car DVR, Headset Cable, Loudspeaker Cable, Mouse Cable, Keyboard Cable, USB Cable etc.
✔ 5mm / 0.2in (inner diameter): suitable for 0.14 - 0.2in / 3.5 - 5mm cables
Application: Car DVR, Loudspeaker Cable, Mouse Cable, Keyboard Cable, USB Cable, RS232 Serial Port Camera Cable etc.
✔ 7mm / 0.27in (inner diameter): suitable for 0.2 - 0.27in / 5 - 7mm cables
Application: AV cable, Coaxial Audio, Audio Power Line, IP Serial Port Camera etc.
✔ 9mm / 0.35in (inner diameter): suitable for 0.27 - 0.35in / 7 - 9mm cables
Application: HDMI Cable, VGA Cable, DVI Cable, Power Line, Loudspeaker Cable, Industrial Cable etc.
✔ 13mm / 0.51in (inner diameter): suitable for 0.35 - 0.51in / 9 - 13mm cables
Application: HDMI Cable, IP Line of Communication, DVI Cable, Overstriking VGA Cable etc.




Black F9 Clip On Ferrite Ring Core Cable Clamps 1



Black F9 Clip On Ferrite Ring Core Cable Clamps 2

Black F9 Clip On Ferrite Ring Core Cable Clamps 3

FAQ:


Q:Do you offer a customized product?
A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.

Q: Are you an ISO9001 manufacturer?
A: Yes, we are a professional manufacturer of EMI filter designing and manufacturing since 2008.

Q: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us


Q: How about the payment terms?
A: we also accept T/T Western Union, Paypal, etc.

Q: How about the certificates?
A: ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc
