EMC EMI Filter

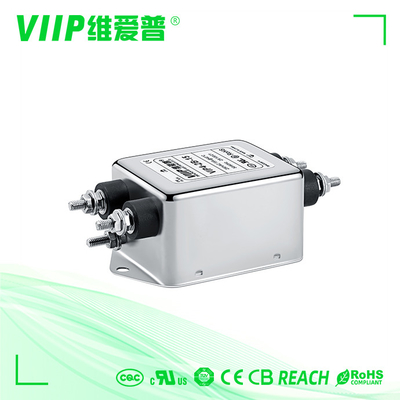

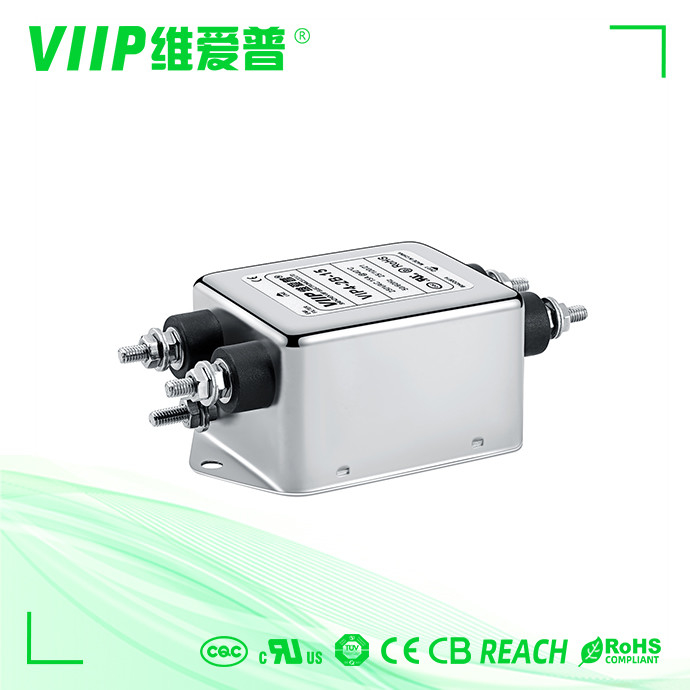

Charging Post 1A EMC Emi Filter Electromagnetic Interference Filter

All Category

Flat Ferrite Core

Miss. Vicky Lee

vip6@szviip.com

19925448748

Contact Now

Charging Post 1A EMC Emi Filter Electromagnetic Interference Filter

Brand Name:	VIIP WeiAiPu
Model Number:	VIP4-3C-01
MOQ:	1 PCS
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL CQC

Type:

EMI EMC Filter

Rated Current:

Operating Frequency:

50/60HZ

Temperature Range:

25 / 085 / 21

Application:

Electronic Equipments

Stage:

3 Stage

Input Impedance:

500VDC/100MOHM MIN

Frequency Range:

150 KHz To 30 GHz

Storage Temperature:

-40℃~+85℃

Item:

EMI Filter

Nominal Center Frequency:

50/60Hz,10KHZ~30MHZ,50/60Hz(MHz)

Dimensions:

Varies Depending On Model

Port:

Shenzhen

Termination Style:

Solder Pins

Rated Current:

Different

Weight:

290g-1000g

Insulation Resistance:

≥100MΩ

Rohs Compliant:

Humidity:

≤95%RH

Supply Ability:

2000 pcs within 10-15 days

Highlight:

Charging Post 1A EMC Emi Filter

1A Electromagnetic Interference Filter

EMC Emi Electromagnetic Interference Filter

Product Description

Charging Post Filter EMC Emi Filter Electromagnetic Interference Filter

Quick Detail:

Rated Current5	50A
Environmental Temperature	40°C
Temperature Range	-25℃~+85℃
Operating Frequency	50/60HZ
Line to Line	1760VDC
Line to Ground	2000VDC
Samples	On stock
MOQ	Negotiated
Unit Price	Negotiated
Delivery	15~20 workdays
Item	Power line EMI Filter
Model	VIP4-2B-50
Original of country	China
Package Type	Surface Mount
Nominal Center Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V

Features:

-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device

-- Various terminal options allow you to select

-- There are a variety of parts and combinations to meet different customer's EMC tests.

-- OEM Can be choice

Applications:

1. Electrical and electronic equipment

2. Single phase servo motor

3. Datacom equipment

4. inverters and converters

5. Charging post

Specifications:

Charging Post 1A EMC Emi Filter Electromagnetic Interference Filter 0

FAQ:
Q:Do you offer a customized product?
A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.

Q: Are you an ISO9001 manufacturer?
A: Yes, we are a professional manufacturer of EMI filter designing and manufacturing since 2009.

Q: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us

Q: How about the payment terms?
A: we also accept T/T Western Union, Paypal, etc.

Q: How about the certificates?
A: ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.

Tags:

250V EMC Emi Filter 150KHZ

110V 250V 20A EMC EMI Filter

Single Phase RFI Filter CE UL TUV
