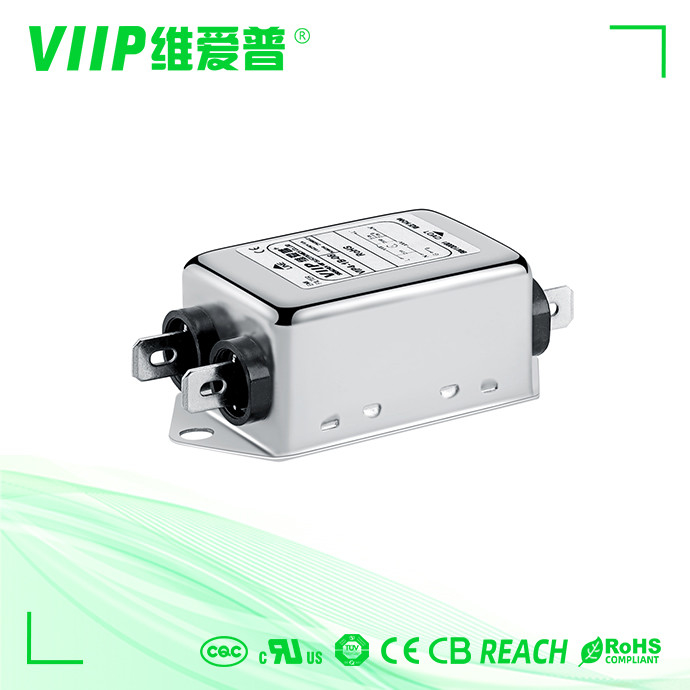

Power Line AC Line EMC Emi Filter 20A 110V 250V For Common Mode Choke

Power Line AC Line EMC Emi Filter 20A 110V 250V For Common Mode Choke
Power Line AC Line EMC Emi Filter 20A 110V 250V For Common Mode Choke
Power Line AC Line EMC Emi Filter 20A 110V 250V For Common Mode Choke Power Line AC Line EMC Emi Filter 20A 110V 250V For Common Mode Choke

Large Image :  Power Line AC Line EMC Emi Filter 20A 110V 250V For Common Mode Choke

Product Details:
Place of Origin: China
Brand Name: VIIP
Certification: CE UL TUV ROHS REACH
Model Number: VIP4-2B-20
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs within 10-15 days

Power Line AC Line EMC Emi Filter 20A 110V 250V For Common Mode Choke

Description
Type: EMI EMC Filter Transfer Function: Low Pass
Temperature Range: 25 / 085 / 21 Case: Plastic
Operating Frequency: 50/60HZ Application: Office Automation
High Light:

AC Line Emi Filter 20A 110V 250V

,

AC Line common mode choke filter

,

EMC Emi Filter 20A 110V 250V

Common Mode Choke Power Line AC Power Line EMC Emi Filter 110V 250V 20A

Quick Detail:

Item Power line EMI Filter
Model VIP4-1B-20
Original of country China
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current 0.5~300A
Environmental Temperature 40°C
Temperature Range -25℃~+85℃
Operating Frequency 50/60HZ
Line to Line 1760VDC
Line to Ground 2000VDC
Maximum Leakage Current 0.4mA/115V,60HZ; 0.8mA/250V, 50HZ
MOQ Negotiated
Price Negotiated
Lead Time 15~20 workdays





Features:



-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device



-- Various terminal options allow you to select



-- There are a variety of parts and combinations to meet different customer's EMC tests.



-- Customized products according to customer's requirements.



Specifications:

Power Line AC Line EMC Emi Filter 20A 110V 250V For Common Mode Choke 0

Our Advantages

(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.


(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.


(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.


(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements
