PCB Low Pass Filter
>

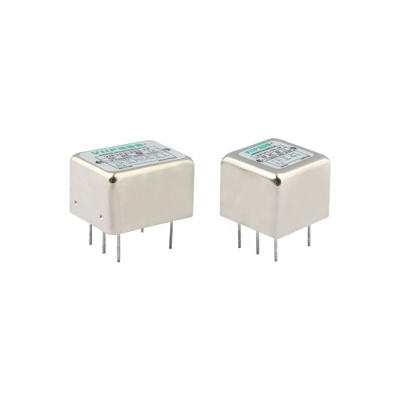

PCB Socket Common Mode Filters 110V 250V DC Emi Power Line Filter

PCB Socket Common Mode Filters 110V 250V DC Emi Power Line Filter

Brand Name: VIIP
Model Number: VIP9D-2B-01
MOQ: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
China
Certification:
CE UL TUV ROHS REACH
Type:
Dc PCB Socket Filter
Rated Current:
1A
Case:
Metal Or Plastic
Operating Frequency:
50/60HZ
Temperature Range:
25 / 085 / 21
Application:
Electronic Equipments
Supply Ability:
2000 pcs within 10-15 days
Highlight:

PCB Socket Common Mode Filters

,

250V DC Emi Power Line Filter

,

PCB Socket Emi Power Line Filter

Product Description

DC PCB Low Pass Filter Electromagnetic Interference Common Mode Filters

Quick Detail:

Item PCB Socket  Filter
Model VIP9D-2B-01
Original of country China
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 110V/250V
Rated Current5 1A
Environmental Temperature 40°C
Temperature Range -25℃~+85℃
Operating Frequency 50/60HZ
Line to Line 1500VDC
Line to Ground 1500VDC
Samples available
MOQ Negotiated
Price Negotiated
Lead Time 15~20 workdays





Features:



-- Specially designed for easy and fast PCB hole through mounting,safe and effective



-- Various current



-- VIP9-2B are two stage common mode filters ,excellent common and differential mode interference suppression effect with very compact structure .





Applications:



1. Exchange board

2. Alarm

3. controller

4. LCD

5. Satellite TV Systems

6. electrical and electronic equipment



Specifications:

PCB Socket Common Mode Filters 110V 250V DC Emi Power Line Filter 0

PCB Socket Common Mode Filters 110V 250V DC Emi Power Line Filter 1

FAQ:
Q:Do you offer a customized product?
A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.

Q: Are you an ISO9001 manufacturer?
A: Yes, we are a professional manufacturer of EMI filter designing and manufacturing since 2009.


Q: How about the payment terms?
A: we also accept T/T Western Union, Paypal, etc.

Q: How about the certificates?
A: ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.
