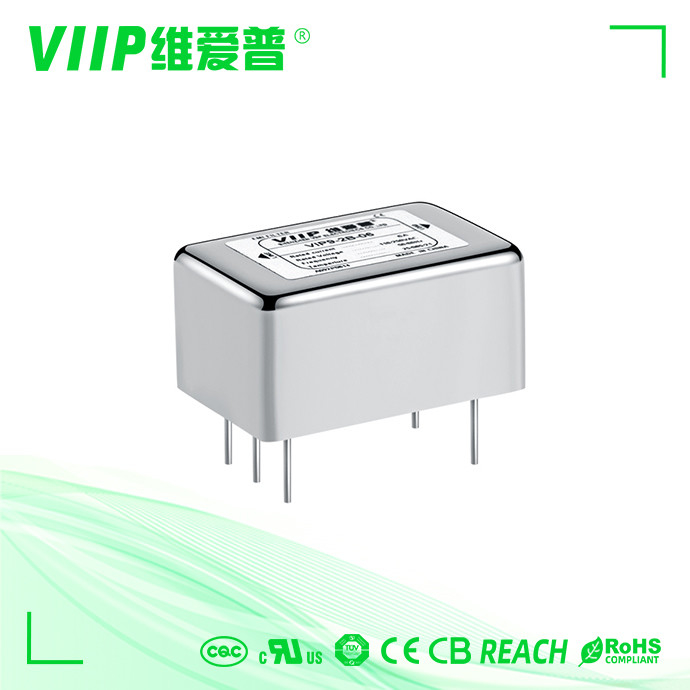

AC 250V PCB Low Pass Filter EMI Socket Filter For Satellite TV Systems

Brand Name:	VIIP
Model Number:	VIP9-2B-06
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL TUV ROHS REACH

Type:

PCB Socket Filter

Rated Current:

Case:

Metal

Operating Frequency:

50/60HZ

Application:

Electronic Equipments

10 PCS

Supply Ability:

2000 pcs within 10-15 days

Highlight:

EMI Socket Filter For Satellite

AC 250V PCB Low Pass Filter

TV Systems PCB Low Pass Filter

Product Description

AC PCB Low Pass Filter Emi Socket Filter For Satellite Tv Systems

Quick Detail:

Item	PCB Socket Filter
Model	VIP9-2B-06
Original of country	China
Package Type	Surface Mount
Nominal Center Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	6A
Environmental Temperature	40°C
Temperature Range	-25℃~+85℃
Operating Frequency	50/60HZ
Line to Line	1500VDC
Line to Ground	1500VDC
Samples	available
MOQ	Negotiated
Price	Negotiated
Leading Time	15~20 workdays

Features:

-- Specially designed for easy and fast PCB hole through mounting,safe and effective

-- Various current for your choice

-- There are a variety of parts and combinations to meet different customer's EMC tests.

Applications:

1. Exchange board

2. Alarm

3. controller

4. LCD

5. Satellite TV Systems

6. electrical and electronic equipment

7. Instrument and meters

Specifications:

AC 250V PCB Low Pass Filter EMI Socket Filter For Satellite TV Systems 0

Electrical schematic:

AC 250V PCB Low Pass Filter EMI Socket Filter For Satellite TV Systems 1

Mechanical Dimension(Unit: mm)

FAQ:
Q:Do you offer a customized product?
A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.

Q: Are you an ISO9001 manufacturer?
A: Yes, we are a professional manufacturer of EMI filter designing and manufacturing since 2009.

Q: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us

Q: How about the payment terms?
A: we also accept T/T Western Union, Paypal, etc.

Q: How about the certificates?
A: ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.
