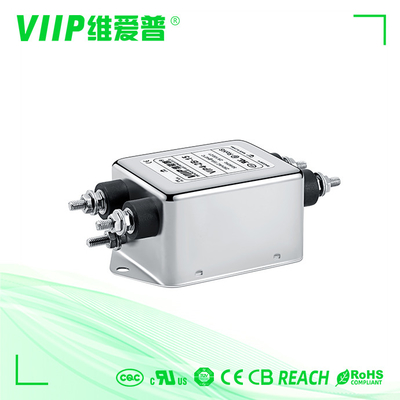

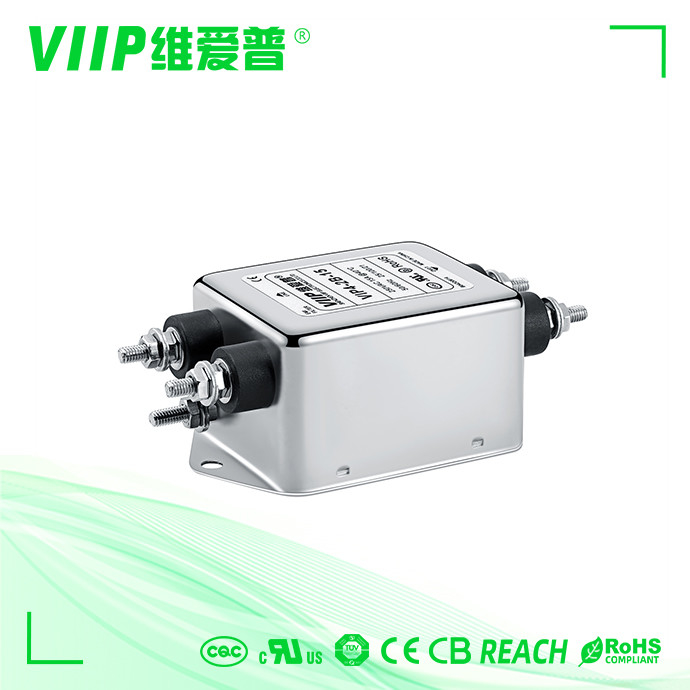

Name: Screw Mount EMI Suppression Filter For AC Power Supply 110V 250V
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP4-1B-10
Price: 14.05 USD
Availability: InStock

Brand Name:	VIIP
Model Number:	VIP4-1B-10
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL ROHS REACH

Rated Current:

10A

Type:

EMI Suppression Filter

Certification:

CE ROHS

Line To Line:

1450VDC

Application:

Electronic Equipments

Package Type:

Surface Mount

Supply Ability:

2000 pcs within 10-15 days

Highlight:

Screw Mount EMI Suppression Filter

emi filter for ac power supply 110V

110V 250V EMI Suppression Filter

Product Description

Screw Mount EMI Suppression Filte Rated Voltage 110V/250V Ac Filters

Quick Detail:

Item	EMI Suppression Filter
Model	VIP4-1B-10
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	1~50A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	10pcs
Port	Shenzhen
leading time	5~15 days

One stage common mode filters with excellent affect. General purpose AC filters with good attenuation performance at frequency range 150khz-30Mhz

Specifications:

Screw Mount EMI Suppression Filter For AC Power Supply 110V 250V 0

Screw Mount EMI Suppression Filter For AC Power Supply 110V 250V 1

Features:

Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device;

Various terminal options allow you to select;

-There are a variety of parts and combinations to meet different customer's EMC tests.
