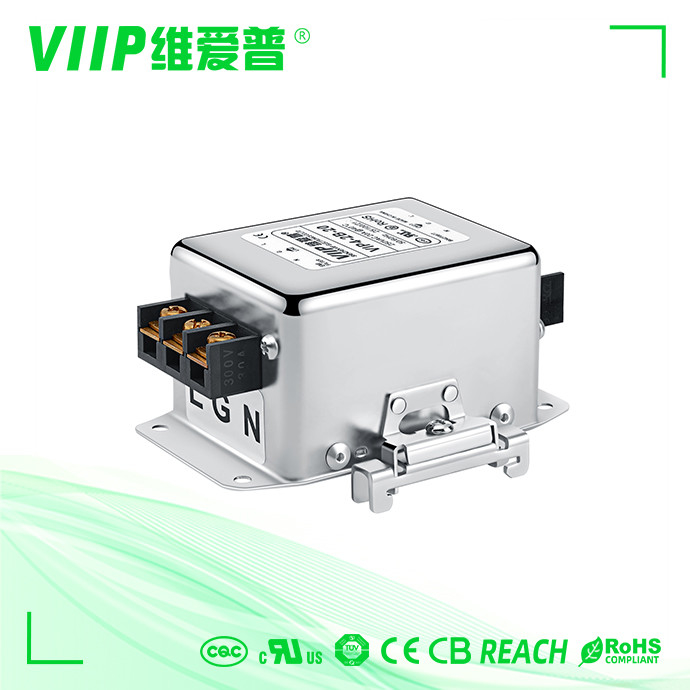

Electrical Noise EMI Suppression Filter 20A Single Phase

Brand Name:	VIIP
Model Number:	VIP4-1B-20
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL ROHS REACH

Rated Current:

Type:

EMI Suppression Filter

Certification:

CE ROHS

Line To Line:

1450VDC

Application:

Electronic Equipments

Package Type:

Surface Mount

Supply Ability:

2000 pcs within 10-15 days

Highlight:

20A electrical noise suppression filter

EMI Suppression Filter 20A

Single Phase EMI Suppression Filter

Product Description

Electrical EMI Suppression Filter Single Phase Customized Service

Quick Detail:

Item	EMI Suppression Filter
Model	VIP4-1B-20
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	1~50A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	10pcs
Port	Shenzhen
leading time	5~15 days

One stage common mode filters with excellent affect. General purpose AC filters with good attenuation performance at frequency range 150khz-30Mhz

Specifications:

Tabulates:

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals			Weight [g]
Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	screw	terminal block	wires	Weight [g]
VIP4-2A-01	1A	<0.5mA	Fig 2	Fig 1	- - -	- - -	0	95
VIP4-2A-03	3A	<0.5mA	Fig 2	Fig 1	- - -	- - -	0	95
VIP4-2A-06	6A	<0.5mA	Fig 2	Fig 1	- - -	- - -	0	95
VIP4-2A-10	10A	<1.0mA	Fig4	Fig 1	- - -	0	- - -	170
VIP4-2B-06	6A	<1.0mA	Fig4	Fig 2	M4	0	- - -	170
VIP4-2B-10	10A	<1.0mA	Fig4	Fig 2	M4	0	- - -	170
VIP4-2B-20	20A	<1.0mA	Fig4	Fig 2	M4	0	- - -	321
VIP4-2B -50	50A	<2.0mA	Fig 5	Fig 2	M6	- - -	- - -	1400
VIP4-2B-100	100A	<2.0mA	Fig 5	Fig 2	M6	- - -	- - -	2000
VIP4-2B-200	200A	<2.0mA	Fig 5	Fig 2	M8	- - -	- - -	3000
VIP4-2C-01	1A	<0.5mA	Fig 1	Fig 3	M10	- - -	0	65
VIP4-2C-03	3A	<0.5mA	Fig 2	Fig 3	M10	- - -	0	95
VIP4-2C-06	6A	<1.0mA	Fig4	Fig 3	M4	0	- - -	175
VIP4-2C-10	10A	<1.0mA	Fig4	Fig 3	M4	0	- - -	175
VIP4-2C-20	20A	<1.0mA	Fig 5	Fig 3	M4	- - -	- - -	600
VIP4-2C-50	50A	<2.0mA	Fig 5	Fig 3	M6	- - -	- - -	1600

Mechanical Dimension(Unit: mm)

Electrical Noise EMI Suppression Filter 20A Single Phase 0

Electrical schematic:

Electrical Noise EMI Suppression Filter 20A Single Phase 1

FAQ:
Q:Do you offer a customized product?
A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.

Q: Are you an ISO9001 manufacturer?
A: Yes, we are a professional manufacturer of EMI filter designing and manufacturing since 2009.

Q: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us

Q: How about the payment terms?
A: we also accept T/T Western Union, Paypal, etc.

Q: How about the certificates?
A: ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.
