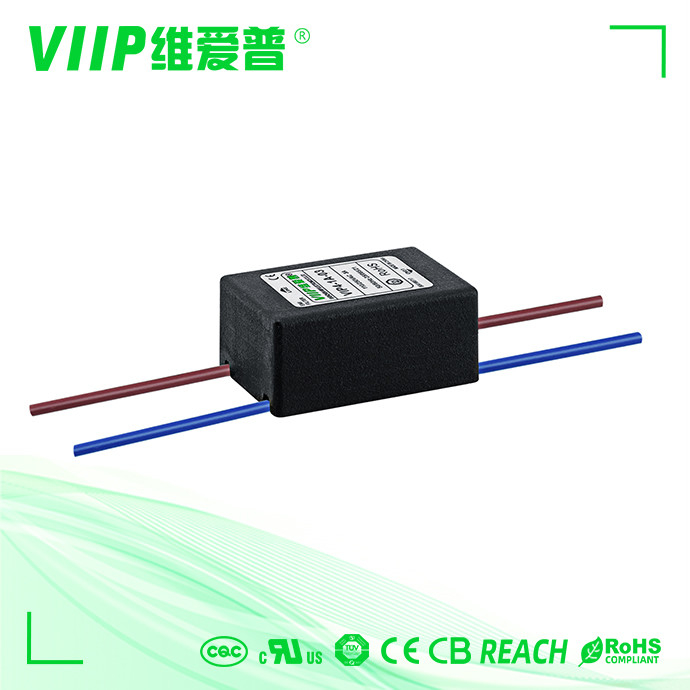

Name: 30A One Stage EMI Suppression Filter 30-100dB AC Line Emi Filter
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP4-1B-30
Price: 14.05 USD
Availability: InStock

Brand Name:	VIIP
Model Number:	VIP4-1B-30
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL ROHS REACH

Rated Current:

30A

Type:

EMI Suppression Filter

Certification:

CE ROHS

Line To Line:

1450VDC

Application:

Electronic Equipments

Package Type:

Surface Mount

Supply Ability:

2000 pcs within 10-15 days

Highlight:

30A One Stage EMI Suppression Filter

100dB AC Line Emi Filter

30A EMI Suppression Filter 30dB

Product Description

30 Ampere EMI Suppression Filter , Electromagnetic Interference Filter

Quick Detail:

Place of Origin	China
Model Number	VIP4-1B-30
Input Impedance	50Ω
Insertion Loss	30-100dB
Line To Line	1760VDC
Nominal Center Frequency	150KHZ~30MHZ
Certificate	ISO9001 CE ROHS cUL TUV
Operating Frequency	50/60HZ
Temperature Range	25 / 085 / 21

One stage common mode filters with excellent affect. General purpose AC filters with good attenuation performance at frequency range 150khz-30Mhz

Tabulates of single phase emi filter:

Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	Terminals			Weight [g]
Part No.	Rated Current [A]	250VAC/50Hz @ 20C Leakage Current [mA]	Physical Dimensions	Electrical Schematics	screw	terminal block	wires	Weight [g]
VIP4-1A-01	1A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP4-1A-03	3A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP4-1A-06	6A	<0.5mA	Fig 1	Fig 1	- - -	- - -	0	65
VIP4-1A-10	10A	<0.5mA	Fig 2	Fig 1	- - -	0	- - -	75
VIP4-1B-06	6A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	140
VIP4-1B-10	10A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	170
VIP4-1B-20	20A	<1.0mA	Fig 3/Fig4	Fig 2	M4	0	- - -	170
VIP4-1B-30	30A	<1.0mA	Fig 5	Fig 2	M6	- - -	- - -	320
VIP4-1B-50	50A	<2.0mA	Fig 5	Fig 2	M6	- - -	- - -	600
VIP4-1B-100	100A	<2.0mA	Fig 5	Fig 2	M8	- - -	- - -	1380
VIP4-1B-150	150A	<2.0mA	Fig 5	Fig 2	M10	- - -	- - -	1900
VIP4-1B-200	200A	<2.0mA	Fig 5	Fig 2	M10	- - -	- - -	1900

Electrical schematic:

30A One Stage EMI Suppression Filter 30-100dB AC Line Emi Filter 0

Mechanical Dimension(Unit: mm)

		A	B	C	D	E	F	G	H		K	L	M	N	p	Q
VIP4-1B		51	51	29	73	---	73	63	---	Φ4.5	25	10	22	---	15.5	6.3*0.8
	6A								---
		51	51	29	86	---	86	63	---	Φ4.5	25	10	9	3.4	15.5	M4
									---
		51	51	29	73	---	73	63	---	Φ4.5	25	10	22	---	15.5	6.3*0.8
	10A								---
		51	51	29	86	---	86	63	---	Φ4.5	25	10	22	3.4	15.5	M4
									---
		51	51	29	73	---	73	63	---	Φ4.5	25	10	22	---	15.5	6.3*0.8
	20A
		51	51	29	84	---	84	63	---	Φ4.5	25	20	8.5	2.5	---	M4

	30A	63	51	38	85	---	104	75	---	Φ5.0	25	25	9	3.8	---	M6

	50A	96	80	42	---	105	137	50	95	Φ4.0	6	42	20	20	3.4	M6

	100A	120	100	50		130	184	80	115	Φ4.0	6	66	28	10	9	M8

	150A	150	105	60		135	214	90	120	Φ4.0	6	50	35	15	4.8	M10

	200A	150	105	60		135	213	90	120	Φ4.0	6	50	35	15	4.4	M10

Tolerances		±1	±1	土1	土1	±1	±1	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5	土0 5

Applications:

1. Electrical and electronic equipment

2. Medical equipment

3. Datacom equipment

4. Office automation equipment
