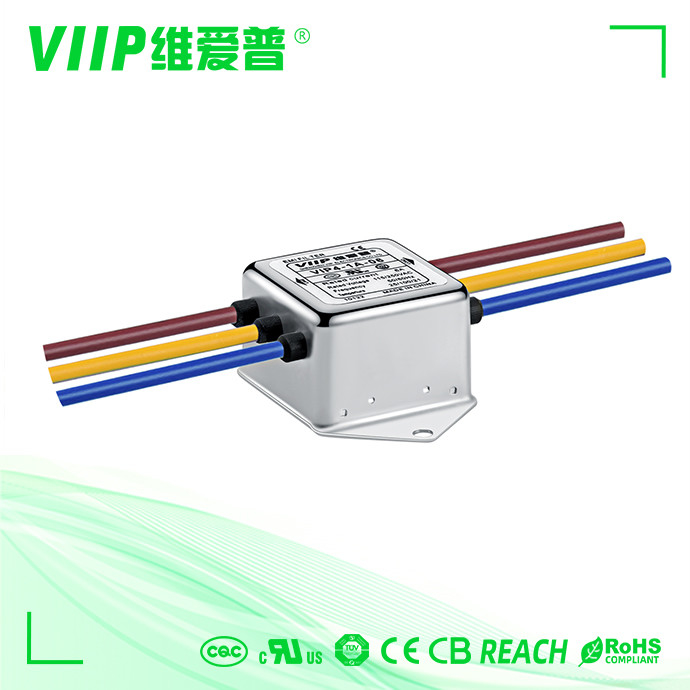

Name: 10KHZ-30MHZ Low Pass Mains Suppression Filter General Purpose
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP4-1B-06
Price: 14.05 USD
Availability: InStock

Brand Name:	VIIP
Model Number:	VIP4-1B-06
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL ROHS REACH

Rated Current:

Type:

EMI Filter

Nominal Center Frequency:

150KHZ~30MHZ

Certification:

CE ROHS

Line To Line:

1450VDC

Supply Ability:

2000 pcs within 10-15 days

Highlight:

Mains Suppression Filter General Purpose

30MHZ Low Pass Mains Suppression Filters

10KHZ Mains Suppression Filters

Product Description

Ac Filters EMI Suppression Filter Power Filter 6A 120V 250V Wire Lead

Quick Detail:

Place of Origin	China
Model Number	VIP4-1B-06
Input Impedance	50Ω
Insertion Loss	30-100dB
Line To Line	1760VDC
Nominal Center Frequency	10KHZ~30MHZ
Certificate	ISO9001 CE ROHS cUL TUV
Operating Frequency	50/60HZ
Temperature Range	25 / 085 / 21

One stage common mode filters with excellent affect. General purpose AC filters with good attenuation performance at frequency range 150khz-30Mhz

Specifications for single phase emi filters:

General purpose AC filters with good attenuation frequency range 150KHz-30MHz

VIP4 -1A and VIP4 -1B series are one - stage commonmode filters with almost the same filtering fleet, only slight differen different current

Compact structure, high performance-cost ratio, easy to install,safe and reliable

High voltage versions above 380VAC are also available

tabulates

Rated current: 0.5A-300A
Various terminals: wire, solder lug, stud, terminal block ,etc
Optional medical versions(H type)
Custom specific versions are available on request

10KHZ-30MHZ Low Pass Mains Suppression Filter General Purpose 0

10KHZ-30MHZ Low Pass Mains Suppression Filter General Purpose 1

Our Company

1.Customized:We have a professional R&D team; our aims is we won't let customers

spend any extra money.

2.Listed company:National high-tech enterprises, brand assurance, reliable quality, and we have the relevant product certifications.

3.Rectification test: We cooperate with top scientific research laboratories to provide free

EMC rectification technical support, samples; and free conduction test.

4.Scale production:Automation technology, scale production, great price,excellent, service,
