Brand Name: | VIIP |
Model Number: | VIP1-1E-10 |
MOQ: | Negotiable |
Price: | Negotiable |
Packaging Details: | 33*33*18 |
Payment Terms: | T/T, Western Union |

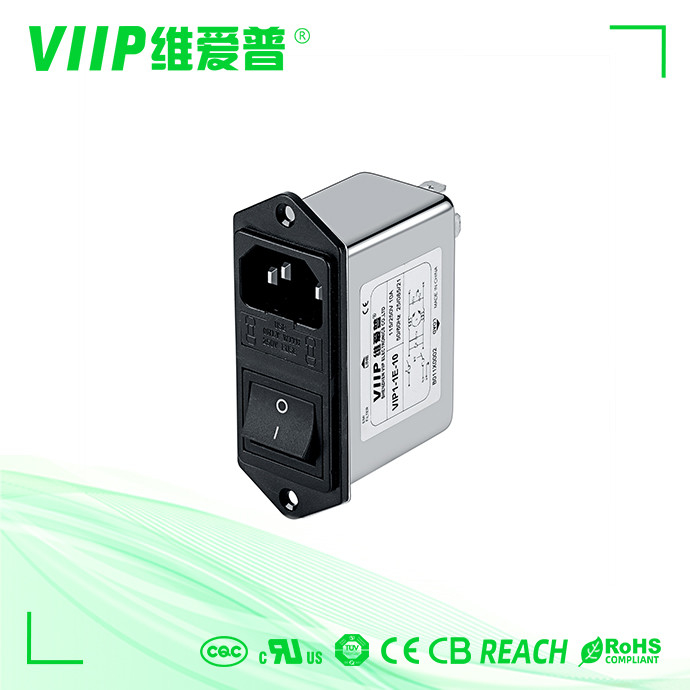

C14 Male Socket EMI Suppression Filter EMI Filter Small Tools
Quick Detail:
Item | IEC Suppression Filter |
Model | IEC Suppression Filter VIP1 |
Transfer Function | Low Pass |
Package Type | Surface Mount |
Nominal Center Frequency | 10K-30MHZ |
Insertion Loss | 60~90dB |
Input Impedance | 50Ω |
Rated Voltage | 110V/250V |
Rated Current | 1~10A |
Environmental Temperature | 40°C |
Temperature Range | 25 / 085 / 21 |
Operating Frequency | 50/60HZ |
Line to Line | 1450VDC |
Line to Ground | 2250VDC |
Description:
specially designed for standard IEC connector ,fast and simple installation,highly cost effective
Specifications:
Applications:
Widely used for telecommunication equipment ,medical equipment ,instruments and meters ,household small tools ,test and measurement equipment ,electronic equipment requiring connection of standard plug
