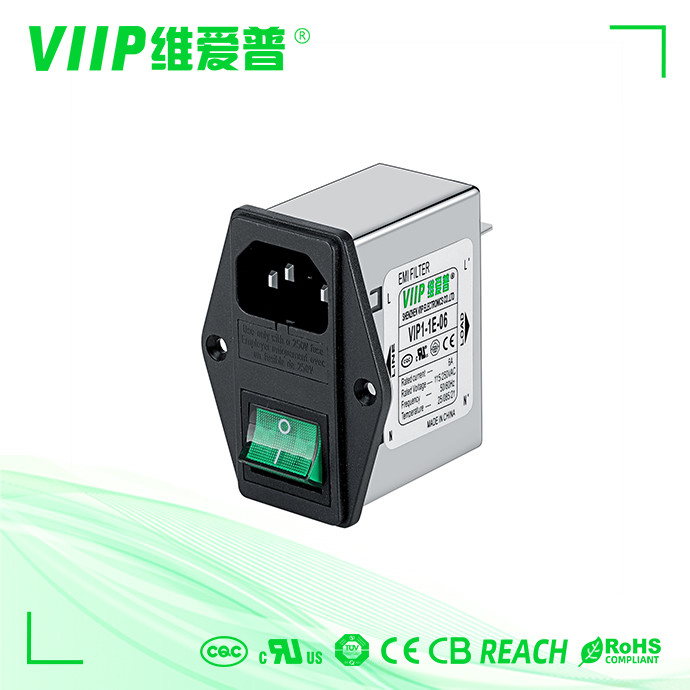

Metal Case IEC Socket EMI Filter 6A AC 250V Surface Mount

Brand Name:	VIIP
Model Number:	VIP1-1E-06
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL ROHS REACH

Transfer Function:

Iec Socket Power Filter

Rated Current:

Rated Voltage:

110/250VAC

Function:

With Fuse

Certification:

CE ROHS

Case:

Metal

Supply Ability:

2000 pcs within 10-15 days

Highlight:

IEC Socket EMI Filter 6A

Surface Mount EMI Filter 6A AC 250V

EMI Filter 6A AC 250V

Product Description

C14 Male Socket 120V 250V Inline IEC EMI Filter AC 250V 6A (IEC Socket )

Quick Detail:

Item	IEC Suppression Filter
Model	IEC suppression Filter VIP1
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	110V/250V
Rated Current	6A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	5pcs
Port	Shenzhen
Lead Time	5~15 weekdays

Description:

specially designed for standard IEC connector ,fast and simple installation,highly cost effective

Specifications:

Metal Case IEC Socket EMI Filter 6A AC 250V Surface Mount 1

Applications:

Widely used for telecommunication equipment ,medical equipment ,instruments and meters ,household small tools ,test and measurement equipment ,electronic equipment requiring connection of standard plug

FAQ:
Q:Do you offer a customized product?
A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.

Q: Are you an ISO9001 manufacturer?
A: Yes, we are a professional manufacturer of EMI filter designing and manufacturing since 2009.

Q: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us

Q: How about the payment terms?
A: we also accept T/T Western Union, Paypal, etc.

Q: How about the certificates?
A: ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.
