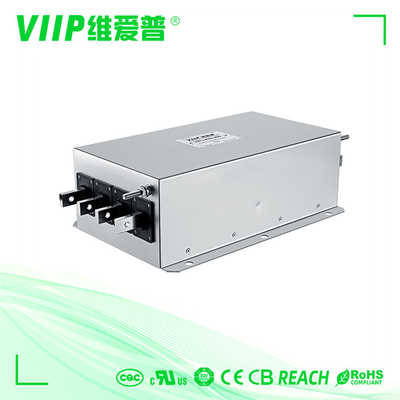

General Purpose 20A 3 Phase Emi Suppression Filters 50/60Hz

Brand Name:	VIIP
Model Number:	VIP5-34G-20
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL ROHS REACH

Rated Voltage:

110/250VAC

Rated Current:

Nominal Center Frequency:

50/60Hz

Application:

Military Equipment

Type:

EMC Filter

Transfer Function:

Low Pass

Supply Ability:

2000 pcs within 10-15 days

Highlight:

3 Phase Emi Suppression Filters 60Hz

General Purpose emi filter 20a

20A 3 Phase Emi Suppression Filters

Product Description

20A 3 Phase MilitaryEMI Filters Emi Suppression Filters Emi Suppression Filters

Description:

1, Rated currents from 0.5 to 1600A

2, High attenuation performance up to 30 MHz

3, Voltage rating 440VAC for worldwide acceptance

4, Approvals: CE, ROHS

5. For all kinds of military electronic equipment

Specification:

Item	Military EMI Filter
Model	Military EMI Filter - VIP5 Series
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal working Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	250V/440V
Current	20A
Working Temperature	40°C
Temperature	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	2250VDC
Line to Ground	2700VDC
	110VAC/60HZ 1.4mA
MOQ	5pcs
Port	Shenzhen
Lead Time	3~15 days

Specifications:

General Purpose 20A 3 Phase Emi Suppression Filters 50/60Hz 0

FAQ

About VIIP
Q:Are you manafacturer or trading company?
Shenzhen VIIP is a manafacturer forEMI/EMC Products located in Shenzhen Guangdong China.

About Products
Q:What certification do you have for your products?
We have got CE ROHS FCC and so on.

Q:What shipping ways do you support for delivery?
We support air, sea and railway shipment.

About Sample Order
Q: Can I have a sample order for your products?
A: Yes, we offer product samples, including mixed samples.
