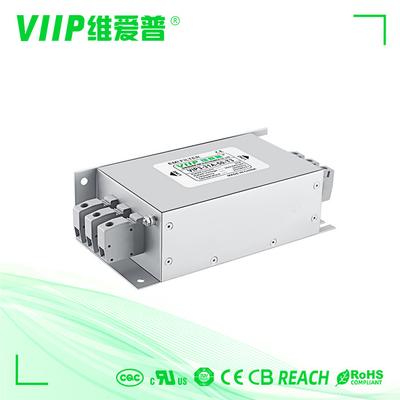

Three Phase 3 Wire Military EMI Filters 10k-30mhz Low Pass Filter

Three Phase 3 Wire Military EMI Filters 10k-30mhz Low Pass Filter
Three Phase 3 Wire Military EMI Filters 10k-30mhz Low Pass Filter
Three Phase 3 Wire Military EMI Filters 10k-30mhz Low Pass Filter Three Phase 3 Wire Military EMI Filters 10k-30mhz Low Pass Filter

Large Image :  Three Phase 3 Wire Military EMI Filters 10k-30mhz Low Pass Filter

Product Details:
Place of Origin: China
Brand Name: VIIP
Certification: CE TUV UL ROHS REACH
Model Number: VIP5-31C-06
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 33*33*18
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs within 10-15 days

Three Phase 3 Wire Military EMI Filters 10k-30mhz Low Pass Filter

Description
Type: Military EMI Filter Nominal Center Frequency: 50/60Hz
Rated Voltage: 110/250VAC Input Impedance: 500VDC/100MOHM MIN
Rated Current: 6A MOQ: 1 PCS
High Light:

3 Wire Military EMI Filters 30mhz

,

Three Phase 30MHZ Low Pass Filter

,

30MHZ Low Pass Military EMI Filters

Emi Filter 3 Phase 3 Wire Military EMI Filters Electric Filter



Description:



suitable for three phase three line power supply Military equipment

compact structure ,simple and time-saving installation,specially suitable for applications with limited space ,highly cost effective

Specification:



Item Military EMI Filter
Model Military EMI Filter - VIP5 Series
Transfer Function Low Pass
Package Type Surface Mount
Nominal working Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 250V/440V
Current 6A
Working Temperature 40°C
Temperature  25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 2250VDC
Line to Ground 2700VDC
Maximum Leakage Current 110VAC/60HZ 1.4mA
MOQ 5pcs
Port  Shenzhen
Lead Time 3~15 weekdays





Features and Benefits:



Designed secialy for the tansmssion of military equipment through CE102 inGJB151A/ 152A



High-specification component selection, high quality assurance to ensure that theproduct is working well in harsh environment.

Strict qualtly contol, complete testing and testing to ensure the consistency of theproduct's zero defects and performance.











Specifications:





Three Phase 3 Wire Military EMI Filters 10k-30mhz Low Pass Filter 0













Our Advantages



(1) Sales Network
Products are exported to Europe, the United States, South Korea, Southeast Asia and other countries and regions.
(2) Hardware Equipment
The company has fully automatic magnetic material detection equipment and production lines, and has an anti-interference magnetic core production base.
(3) Integrated Technical Service
Our company is an electromagnetic compatibility company integrating R&D, production and sales of anti-interference (EMC) electronic components and EMC testing services.
(4) Excellent Corporate Culture
The company organizes and implements quality management in strict accordance with standards, follows eight principles, and continuously improves work, with all employees as the first task to meet customer requirements
