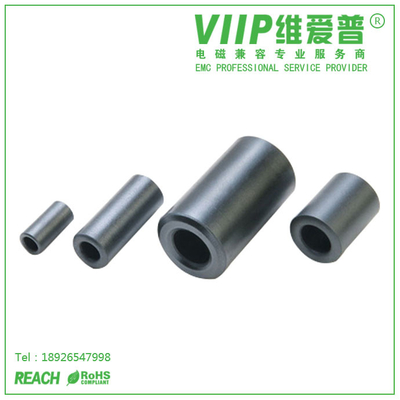

Soft Nizn Clap On Ferrite Core Material For Round Cable

Soft Nizn Clap On Ferrite Core Material For Round Cable
Soft Nizn Clap On Ferrite Core Material For Round Cable
Soft Nizn Clap On Ferrite Core Material For Round Cable Soft Nizn Clap On Ferrite Core Material For Round Cable

Large Image :  Soft Nizn Clap On Ferrite Core Material For Round Cable

Product Details:
Place of Origin: china
Brand Name: VIIP
Certification: Rohs Reach
Model Number: V180117H
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 5k For one week

Soft Nizn Clap On Ferrite Core Material For Round Cable

Description
Type: Clap-on Material: Nizn
Product Name: Ferrite Materials Model: V180117H
Application: For Round Cable Composite: Magnet Powder
High Light:

ferrite core material For Round Cable

,

Soft Nizn Clap On Ferrite Core

,

Soft Nizn Ferrite Core Material

EMI Ferrite Core Transformer Ferrite Core Ferrite Toroid Core



Quick Detail:





  • 1. Model:Transformer ferrite core /isolator ferrite ring
  • 2. Part number :V180117H
  • 3. Size:OD=10mm ID=6mm H=14mm
  • 4. Material: Nizn

​Dimension (mm)



Soft Nizn Clap On Ferrite Core Material For Round Cable 0

A 10 ± 0.4mm
B 6土 0.5mm
C 14± 0.4 mm

Description:



This is a ferrite ring, not a magnet. It has no magnetism.
Iron powder core is generally stored near signals of place.




Electric characteristics









项目 TEST ITEM

电气性能

ELECTRIC CHARACTERISTICS



DIMENSION (unit:mm)

Q L Zl Z2 Z3 Z4 A B c D E F
    50 90     10 14 6
            0. 4 0.5 0.4
-     0 0     0. 4 0.5 0.4
1     61.2 124.6     9. 80 13.87 5. 98
2     61. 6 124. 2     9.90 13.82 5.95
3     62.2 124. 4     9.86 13.82 5.99
4     62.0 124. 0     9.89 13.89 5.96
5     61.0 125. 0     9.85 13.92 6.07
6     61.2 125. 2     9.92 13.95 6.03
7     61.6 125.4     9.78 13.97 6.1
8     61.4 125. 6     9. 79 14.02 6.02
9     62.8 125.4     9. 88 14.00 6.08
10     62.4 124.6     9. 92 14.01 6.04
x     61.64 124.84     9.85 13.92 6.02
Y I N     y y     y y y




Specifications:

Soft Nizn Clap On Ferrite Core Material For Round Cable 1









Soft Nizn Clap On Ferrite Core Material For Round Cable 2
