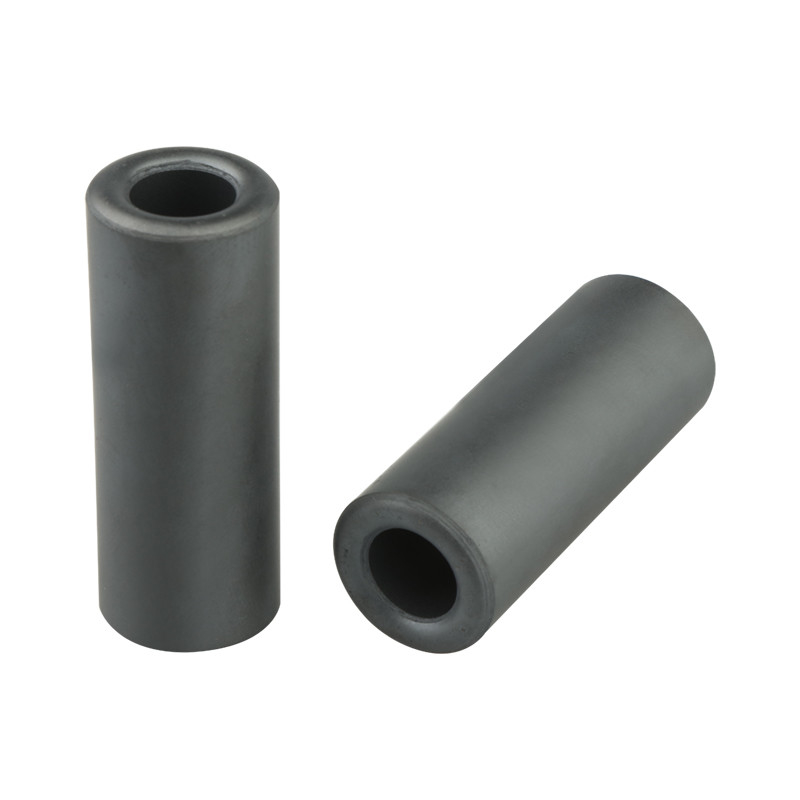

Isolator EMI Ferrite Core Ring 15mm Height Low Permeability
  • Name

Isolator EMI Ferrite Core Ring 15mm Height Low Permeability

Brand Name: VIIP
Model Number: V18098H
MOQ: 100PCS
Price: Negotiable
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
china
Certification:
Rohs Reach
Type:
Clap-on
Material:
Nizn
Product Name:
Ferrite Materials
Application:
For Transformers
Color:
Black
Model:
V180217T
Supply Ability:
5k For one week
Highlight:

Isolator EMI Ferrite Core Ring

,

Ferrite Core Ring 15mm Height

,

Low Permeability EMI Ferrite Core

Product Description

EMI Ferrite Core Transformer Ferrite Core Ferrite Toroid Core



Quick Detail:





  • 1. Model:Transformer ferrite core /isolator ferrite ring
  • 2. Part number :V18098H
  • 3. Size:OD=9.8mm ID=4.8mm H=15mm
  • 4. Material: Nizn

​Dimension (mm)



Isolator EMI Ferrite Core Ring 15mm Height Low Permeability 0

A 9.5 ± 0.4mm
B 18 土 0.5mm
C 4.8 ± 0.4 mm

Description:



This is a ferrite ring, not a magnet. It has no magnetism.
Iron powder core is generally stored near signals of place.
It has the characteristics of isolating eddy current, low permeability and restraining interference.






Electric characteristics





项目 TEST ITEM

＋

电气性能

ELECTRIC CHARACTERISTICS



DIMENSION (unit:mm)
Q L Zl Z2 Z3 Z4 A B c D E F
    70 140     9. 5 18 4.8
            0. 4 0.5 0.4
-     0 0     0. 4 0.5 0.4
1     86. 2 165. 9     9. 50 17.82 4. 78
2     86. 6 164. 9     9.43 17.90 4.80
3     86.8 164. 7     9.45 17.96 4. 71
4     86. 4 164. 6     9. 32 17.97 4. 77
5     85. 2 165. 7     9.41 17.99 4.82
6     85. 6 165. 6     9.43 18.02 4. 79
7     85. 4 165.4     9.43 18.05 4.83
8     85.8 164. 6     9. 35 18.06 4.69
9     86. 2 164. 7     9. 36 18.04 4.68
10     85. 6 165. 6     9. 38 18.02 4. 72
x     85.98 165.17     9.40 17.98 4. 75
Y I N     y y     y y y




Specifications:

Isolator EMI Ferrite Core Ring 15mm Height Low Permeability 1



Applications:

Used widely in power transformers, current transducers, instrument transformers, inductors, chokes, ballasts, voltage stabilizers and regulators, welding transformers, broad band transformers, filters, etc.









Isolator EMI Ferrite Core Ring 15mm Height Low Permeability 2



Tags:

Nizn High Permeability Ferrite Core

Transformer EMI Ferrite Core Coil

ferrite toroid core OEM ODM
