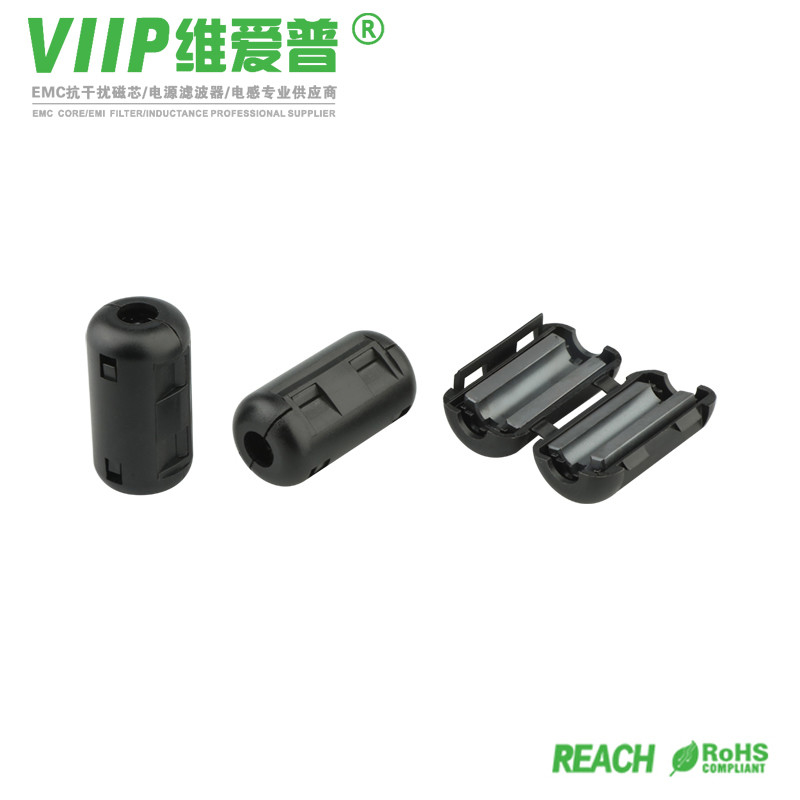

Industrial Magnet Clip On Ferrite Choke 7mm

Industrial Magnet Clip On Ferrite Choke 7mm
Industrial Magnet Clip On Ferrite Choke 7mm
Industrial Magnet Clip On Ferrite Choke 7mm Industrial Magnet Clip On Ferrite Choke 7mm

Large Image :  Industrial Magnet Clip On Ferrite Choke 7mm

Product Details:
Place of Origin: china
Brand Name: VIIP
Certification: Rohs Reach
Model Number: V18011B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 5k For one week

Industrial Magnet Clip On Ferrite Choke 7mm

Description
Type: Snap-on Material: F9
Inner Size: 7mm Application: Industrial Magnet
MOQ: 10 PCS Certificate: Rohs Reach
High Light:

Industrial Magnet Ferrite Choke

,

Clip On Ferrite Choke 7mm

,

7mm Magne Ferrite Choke

Ferrite Magnet Wires Clip-On Ferrite Snap On Ferrite Choke Industrial Magnet



Description:





Ferrite Cores:Reduce electro-magnetic interference and improve signal integrity; Easy to install, just clip it on and you will get clearer signal and faster data transmission.



Product Material: Ni-Zn ferrite. It can improve the electromagnetic field around the solenoid, thus avoiding outside interference.

Installation: Easy to install and convenient to use. The cylinder can be dismountable, and the port has the elastic clip fastener.



Perfect Feature: Simple, convenient, effective and small. Good performance, high efficiency, long life. Put it closer to where the electromagnetic source is, the more effectively improve the signal quality of audio and video.



Suitable Situations: Can be used to house a variety of wire. Such as: power cable, audio cable, AV cable,data cable, etc. Effectively screen electromagnetic interference and filter out high-frequency noise pulses.



The Cable Clip doesn't cause distortion of the transmitted signal and won't affect your audio, video and picture quality.

Specifications:



Port Shenzhen
Brand Name VIIP
Model Number

V18011B

Size inner diameter 7mm
Composite Ferrite Magnet
Application cables







Specifications:

No. Specifications Fig Dimensions:mm Impedance(Ω)min
ΦA B ΦC D E 25MHz 100MHz
1 V18001A 1 13±1 11.8±1 3.5±0.8 25.2±1 2.5±1 135 260
2 V18001 1 13±1 12±1 5±0.8 25.2±1 2.5±1 90 190
3 V18002 1 16.5±1 14±1 7±0.8 30±1 2.5±1 80 195
4 V18002C 5 20.7±1 39.4±1 7.2±0.5 / / 120 220
5 V18003 1 19.5±1 18±1 9±0.8 35±1 5.5±1 100 240
6 V18004 1 23.5±1 22.2±1 13.5±0.8 36±1 10.5±1 90 190
7 V18005 2 17.5±1 19.5±1 6.5±0.8 32.5±1 / 135 330
8 V18006 2 22±1 23.5±1 10±0.8 33±1 / 90 250
9 V18007 2 29±1 30±1 13±0.8 32.2±1 / 160 280
10 V18008 3 19.5±1 23±1 8±0.8 17±1 23±1 70 140
11 V18009 3 19.5±1 23±1 8±0.8 19.5±1 26±1 80 160
12 V18010 4 15±1 14±1 7±1 18±1 22±1 45 125
13 V18011 4 19.5±1 / 9±1 32±1 36±1 105 185
14 V18011A 4 20.5±1 20.5±1 11±0.8 32±1 36±1 80 155
15 V18011B 3 28±1 31±1 11.4±0.8 17.5±1 23.5±1 75 135
16 V18012 4 30±1 / 13±0.8 34±1 39±1 125 230
17 V18013 5 16.5±1 29.5±1 5±0.8 / / 80 165
18 V18017 4 40.5±1 / 17±1 49.8±1 / 200 350
19 V18018 3 29±1 33±1 15±0.8 15.5±1 21.5±1 55 110
20 V18019 1 19.5±1 18±1 8±0.8 35±1 5.5±1 120 175
21 V18020 3 24±1 27±1 10±0.8 13.5±1 19±1 60 110
22 V18021 1 11.7±1 10.8±1 4±0.8 21.4±1 2.6±1 90 160
23 V18031 2 15±1 14±1 6±1 23±1 / 80 160
24 V18032 1 19.5±1 18.0±1 5.0±1 35±0.8 / 190 320
25 V18033 4 19.5±1 / 8±0.8 32±1 36±1 120 175



Industrial Magnet Clip On Ferrite Choke 7mm 0

Applications:

 7mm / 0.27in (inner diameter): suitable for 0.2 - 0.27in / 5 - 7mm cables
Application: AV cable, Coaxial Audio, Audio Power Line, IP Serial Port Camera etc.







Industrial Magnet Clip On Ferrite Choke 7mm 1

Industrial Magnet Clip On Ferrite Choke 7mm 2
