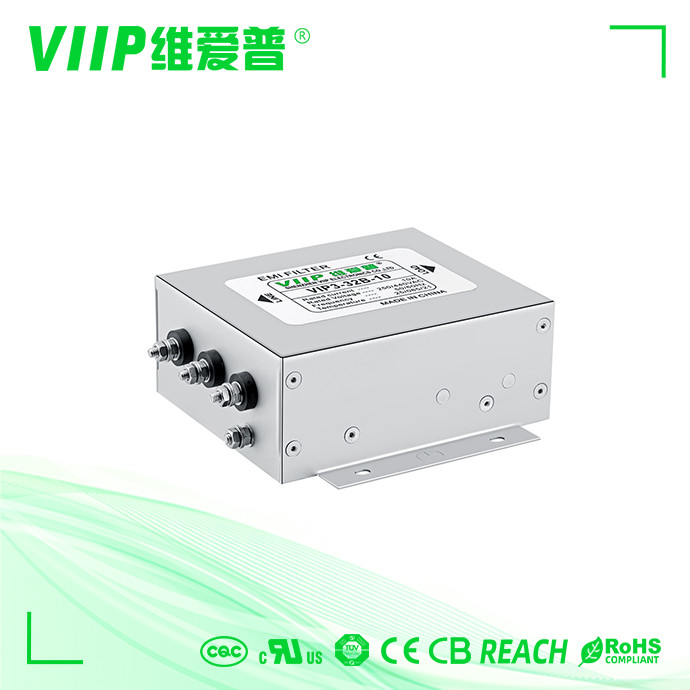

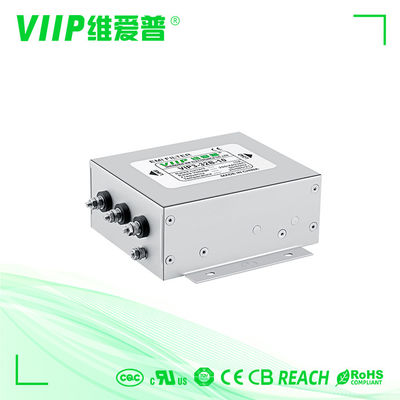

Name: 250VAC 150A Inverter EMI Filter RFI Suppression Filter For VFD
Brand: Shenzhen VIIP Electronics Co., Ltd.
SKU: VIP6-33M-150
Price: 14.05 USD
Availability: InStock

Brand Name:	VIIP
Model Number:	VIP6-33M-150
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	333318
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE TUV UL ROHS REACH

Rated Voltage:

110/250VAC

Rated Current:

150A

Nominal Center Frequency:

50/60Hz

MOQ:

1 PCS

Application:

VFD Inverter

Line To Line:

2700VDC

Supply Ability:

2000 pcs within 10-15 days

Highlight:

250VAC 150A Inverter EMI Filter

150A Suppression Filter For VFD

250VAC RFI Suppression Filter For VFD

Product Description

150A Inverter EMI Filter Emi Suppression Filters For VFD Inverter Three Phase Inverter

Description:

1, Rated currents from 0.5 to 2000A

2, High attenuation performance up to 30 MHz

3, Voltage rating 440VAC for worldwide acceptance

4, Approvals: CE, ROHS

Specification:

Item	3 Phase EMI Filter
Model	3 Phase EMI Filter - VIP6 Series
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal working Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	380V/440V
Current	150A
Working Temperature	40°C
Temperature	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	2250VDC
Line to Ground	2700VDC
	110VAC/60HZ 1.4mA
MOQ	5pcs
Port	Shenzhen
Leading Time	3~15 weekday for Low Pass EMI Filter

Specifications:

250VAC 150A Inverter EMI Filter RFI Suppression Filter For VFD 0

250VAC 150A Inverter EMI Filter RFI Suppression Filter For VFD 1

Applications:

1. Mainframe computer systems

2. Servo motor

3. UPS/SMPS

4. Industrial electronic equipment by using frequency conversion principle

Tags:

380V 440V 30mhz Low Pass Filter

40A 3 Phase VFD Emi Filter

Inverter EMI Filter 380V 440V
